Flexible Stainless Steel Ferrule Rope Mesh For Safety Zoo Mesh

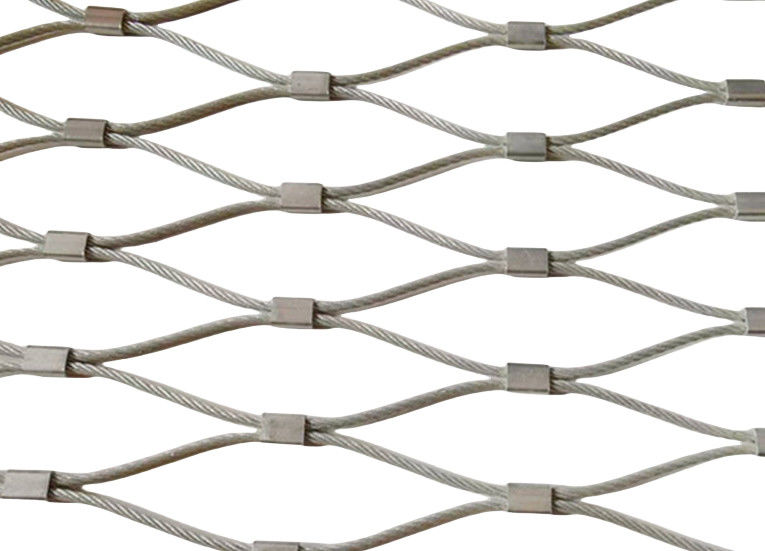

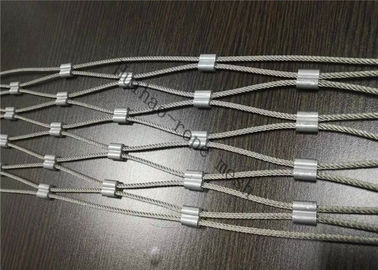

Details of the Stainless Steel Rope Mesh

Stainless steel rope mesh is a kind of plain weave, each warp wire rope crosses alternately above and below each weft wire rope. Warp and weft wire ropes generally have the same diameter.The mesh has strong tensile strength and high flexibility,high transparence and wide span. The flexible s.s. cable mesh has unreplacable advantages compared with other mesh products in many aspects like practicability,security,aesthetic property and durability etc.

• Rope Mesh Material: 304,316
• Rope Diameter: 1.2-4.0mm
• Rope Wire Construction: 7*7 ,7*19
• Mesh Type: Ferruled Mesh Orientation: Vertical , Horizontal
• Mesh Angel: 60 degree in shape diamond
• Mesh Finished: Stainless Steel Polished
• Application : Zoo mesh fence , Staircases , Balustrades, etc
• Supply Ability: 3000 Square Meter/Square Meters per Week stainless steel security balustrade infill panels

Mesh Direction of the Rope Mesh

Application of stainless steel rope mesh

1. Green Facade - Cable System for Most Climbing Plants
2. Aviary Netting - Lightweight, Durable and Long Lasting

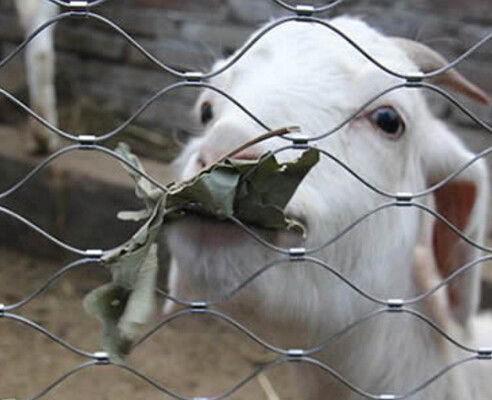

3. Cable Zoo Mesh - Solution to Enclosing Most Animals
4. Helipad Safety Net - Modular Heliport Webbing
5. Safety Net - Structural Measure to Prevent Suicide
6. Cable Mesh - Excellent Solution to Safety
7. Steel Mesh Balustrade - bridge, stair, balcony, path

Packing of the Stainless Steel Rope Mesh :

• We usually packed the rope mesh in rolls , then wrapped it with plastic film , the put in to the case .
• The rope mesh also could be packed according to the requeirments.

Install accessories of the Flexible Stainless Steel Ferrule Rope Mesh For Safety Zoo Mesh
