Architectural Flexible 2'' X 2'' SS304 Rope Mesh For Safety

Architectural Flexible 2'' X 2'' SS304 Rope Mesh For Safety
Architectural Flexible 2'' X 2'' SS304 Rope Mesh For Safety
Architectural Flexible 2'' X 2'' SS304 Rope Mesh For Safety Architectural Flexible 2'' X 2'' SS304 Rope Mesh For Safety Architectural Flexible 2'' X 2'' SS304 Rope Mesh For Safety Architectural Flexible 2'' X 2'' SS304 Rope Mesh For Safety Architectural Flexible 2'' X 2'' SS304 Rope Mesh For Safety

Large Image :  Architectural Flexible 2'' X 2'' SS304 Rope Mesh For Safety

Product Details:
Place of Origin: CHINA
Brand Name: HUIHAO
Certification: ISO9001-2015
Model Number: Rope mesh
Payment & Shipping Terms:
Minimum Order Quantity: 100 square meter
Packaging Details: Packing in carton box or in wooden box ,or can be customized
Delivery Time: within 8 days
Payment Terms: L/C, T/T, Western Union,paypal
Supply Ability: 1000 square meter per month
Contact Now

Architectural Flexible 2'' X 2'' SS304 Rope Mesh For Safety

Description
Product Name: SS Rope Mesh Material: SS 304, SS 316, SS 316 L , Etc
Rope Diameter: 1.2-4mm Mesh Size: 1''X1'',1.5''X1.5'', 2''X2'', Etc
Rope Constructions:: 7x7, 7x19 Mesh Type: Ferrule Type
Technique: Woven Length: Customized
Application: Protect Fence
Highlight:

Safety Rope Mesh

,

2 X 2 Rope Mesh

,

Architectural Rope Mesh

Architectural Flexible SS304 Rope Mesh For Safety

Details of the Flexible Rope Mesh

The Flexibel rope mesh is a network structure composed of multiple strands of rope, It woven by metal rope, such as stainless steel rope or galvanized rope wire , which is widely used in many fields. It usually has a certain elasticity and strength, and can withstand weight or tension.

  • Name :SS rope mesh , Flexible rope mesh , Safety rope mesh , etc
  • Material:303, 304L,316, 316L Stainless steel wire
  • Size:Customized
  • Hole shape:Diamond hole
  • Wire diameter:1mm~5mm or customized
  • Opening size:2" x 2", 3" x 3" and 4" x 4".or customized

Feature:Hand knitting, Light weight, high-strength, rustles, eco-friendly, safety, long service life, Corrosion resistant, easy -assembly



Specification of Flexible Rope Mesh

The common data sheet of the flexible rope mesh as following :

The specification of SS ferrule flexible rope mesh

Mesh No

Rope Construction

Rope Diameter

Aperture

Breaking Force

Inch

mm

mm

kN

HUIHAO-01

7 × 19

1/8

3.2

120 × 208

7.38

HUIHAO-02

7 × 19

1/8

3.2

100 × 173

7.38

HUIHAO-03

7 × 19

1/8

3.2

90 × 156

7.38

HUIHAO-04

7 × 7

3/32

2.4

100 × 173

4.18

HUIHAO-05

7 × 7

3/32

2.4

90 × 156

4.18

HUIHAO-06

7 × 7

3/32

2.4

80 × 139

4.18

HUIHAO-07

7 × 7

3/32

2.4

70 × 121

4.18

HUIHAO-08

7 × 7

5/64

2.0

100 × 173

3.17

HUIHAO-09

7 × 7

5/64

2.0

90 × 156

3.17

HUIHAO-10

7 × 7

5/64

2.0

80 × 139

3.17

HUIHAO-11

7 × 7

5/64

2.0

70 × 121

3.17

HUIHAO-12

7 × 7

1/16

1.6

80 × 139

2.17

HUIHAO-13

7 × 7

1/16

1.6

70 × 121

2.17

HUIHAO-14

7 × 7

1/16

1.6

60 × 104

2.17

HUIHAO-15

7 × 7

1/16

1.6

51 × 87

2.17

HUIHAO-16

7 × 7

3/64

1.2

80 × 139

1.22

HUIHAO-17

7 × 7

3/64

1.2

60 × 104

1.22

HUIHAO18

7 × 7

3/64

1.2

50 × 87

1.22

HUIHAO-19

7 × 7

3/64

1.2

40 × 69

1.22

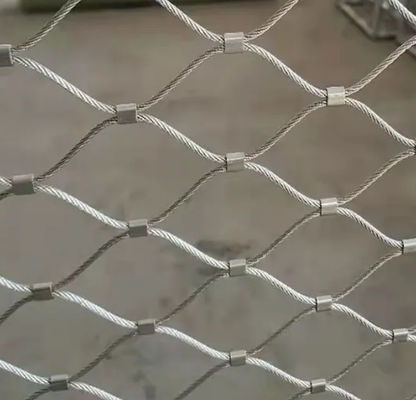

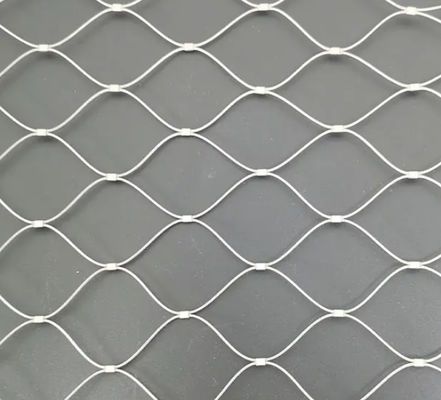

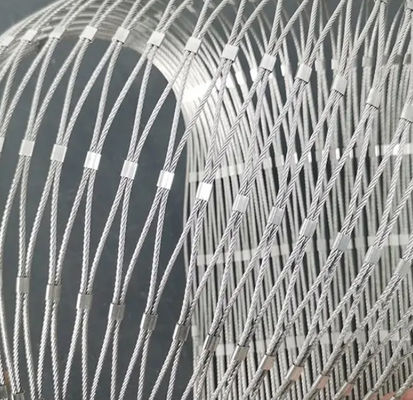

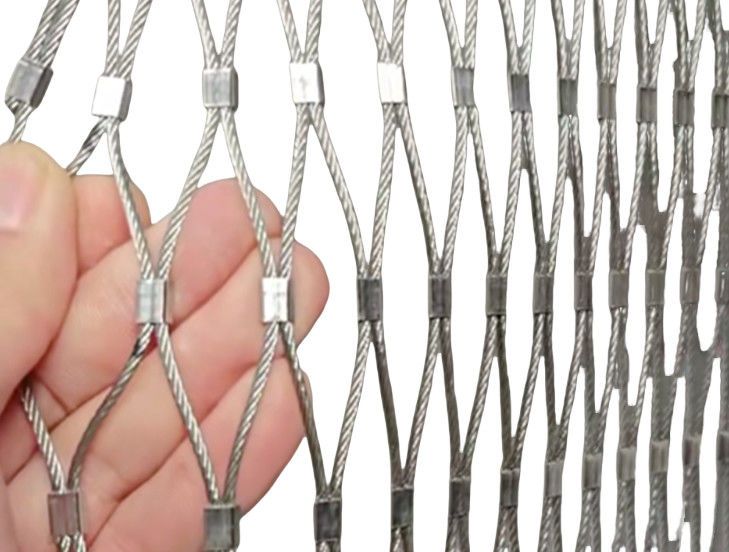

Photos of of Flexible Rope Mesh

Architectural Flexible 2'' X 2'' SS304 Rope Mesh For Safety 0

Architectural Flexible 2'' X 2'' SS304 Rope Mesh For Safety 1

Application of Flexible Rope Mesh

1. Animal enclosure: For zoo animals and birds
2. Drop safety: Playground fall prevention
3. Mesh Bag: Anti falling of various lighting fixtures such as searchlights, anti cutting and anti-theft of backpacks, suitcases and other items
4. Safety balustrade: For bridge,suspension bridge,stair railing, railing balustrade
5. Building decorative: For playground, amusement, park, house, etc
6. Used for plant climbing, green wall

Architectural Flexible 2'' X 2'' SS304 Rope Mesh For Safety 2

Architectural Flexible 2'' X 2'' SS304 Rope Mesh For Safety 3

Packing of the of the Flexible Rope Mesh

  • We usually packed the rope mesh in rolls , then wrapped it with plastic film , the put in to the case .
  • The rope mesh also could be packed according to the requeirments.

Architectural Flexible 2'' X 2'' SS304 Rope Mesh For Safety 4Architectural Flexible 2'' X 2'' SS304 Rope Mesh For Safety 5

Install accessories of the Flexible Rope Mesh

Architectural Flexible 2'' X 2'' SS304 Rope Mesh For Safety 6



Architectural Flexible 2'' X 2'' SS304 Rope Mesh For Safety 7
