Product Details:
|
| Product Name: | Insulation Anchor Pin Nails | Material: | Stainless Steel ,galvanized Steel |
|---|---|---|---|
| Diameter: | 2.0mm,2.7mm In Common ,other To Be Request | Pin Length: | 25mm-300mm |
| Head Type: | 22mm | Self Locking Washer: | 25mm,30mm |
| Type 1: | Quilting Pins | Type 2: | Lacing Hook&washer&rings |
| Highlight: | Blanket Insulation Anchor Pin Nails,Removable Blanket Insulation Anchor Pin Nails |
||
exhaust systems (tie wire as the lacing material).
raw insulation material.

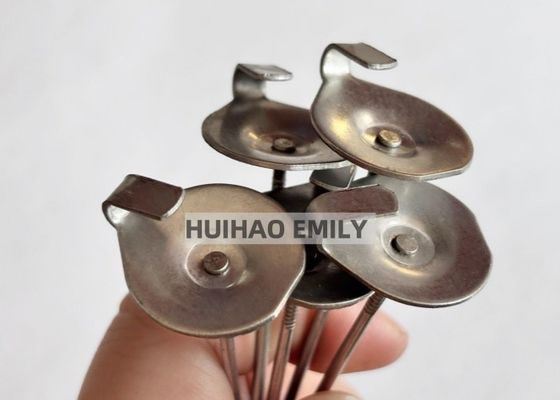

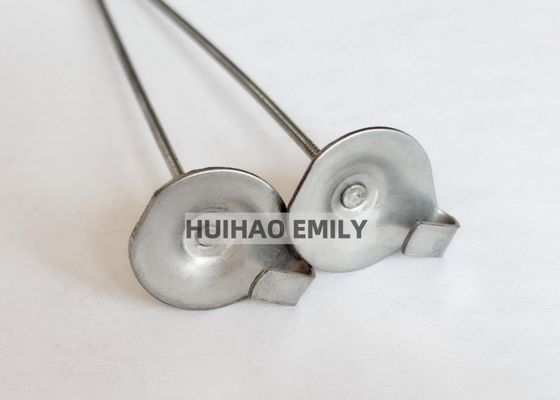

Features of slim lacing anchor
pins material is annealed steel wire, easy for bending and cutting.
zinc coated/copper plated surface treatment for rustproof
smooth surface ,No burry
base washer material is hardness material, not be deformed
| Product name | Insulation Anchor Pins |
| Pin size | Length: 12GA or 14 GA in common ,other to be request |
| Diameter: 1-1/2”,2-1/2”,3-1/2”,4-1/2”,5-1/2”,other to be request | |
| Material | Pin: Mild Steel, Stainless steel 304/316/316L |
| Base: Mild Steel, Stainless steel 304/316/316L | |
| Surface treatment | Polish for stainless steel |
| Galvanized plating for mild steel | |
| Product features | Firm conjunction between bases and pins |
| Pins are soft, easy bending over | |
| Sharp points,easy going through any insulation blankets | |
| Production workmanship | Automated production |
| Packing | Packing can be customized as per requirements |
| Supply capability | 350000 sets per month |
| Installation accessories | Self-locking washer ,D type ring |
| Application | used in the fabrication of insulation blankets or removable covers/pads |
| Remark | Technical parameters are available upon request |
1: prepare the insulation blanket or removable cover
2: press the lacing anchor through the insulation
3: press the self locking washer into the pin to fasten the insulation
4: bend over or clip off the pin
5:install the insulation blanket or removable cover
6: Lace the hook by lacing tie in order to fasten the insulation.
=38mm insulation pin fixing for 15mm-25mm insulation materials
=63mm insulation pin fixing for 25mm-45mm insulation materials
=90mm insulation pin fixing for 45mm-70mm insulation materials
=110mm insulation pin fixing for 40mm--70mm insulation board
=145mm insulation anchors for 75mm-105mm insulation slabs
=170mm fireproof fixing for 105-130mm insulation panels
=200mm metal fasteners for 135mm-160mm insulation boards
|

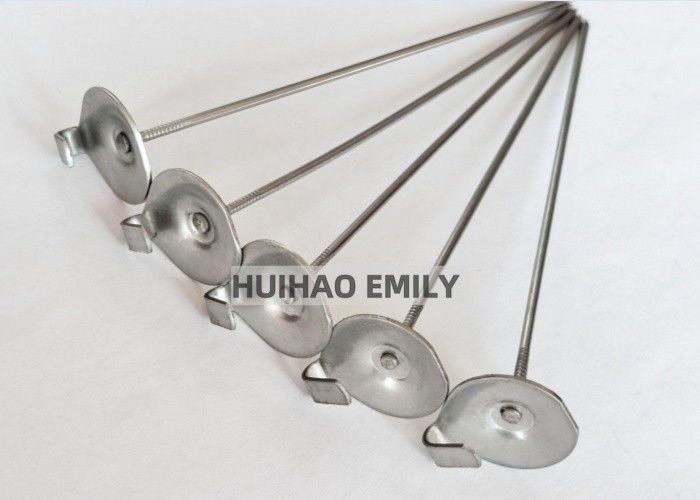

Lacing anchors Material :stainless steel 304/316/316L Pin diameter :2mm,2.7mm Pin length :2-1/2 inch, 4-1/2inch or to be request Self locking washer :25mm,30mm |
|
Quilting pins Material :stainless steel 304/316/316L Pin diameter :2mm,2.7mm Pin length :2-1/2 inch, 4-1/2inch or to be request Self locking washer :25mm,30mm |
|
|
2 holes Lacing hooks Material :stainless steel 304/316/316L Size:22mm Thickness :1mm is in common,other to be request Surface :NO&AB or without |
|
Single holes Lacing hooks Material :stainless steel 304/316/316L Size:22mm Thickness :1mm is in common,other to be request Surface :NO&AB or without |
|
|
Lacing washers Material :stainless steel 304/316/316L Size:25mm Thickness :1mm is in common,other to be request
|
|
|

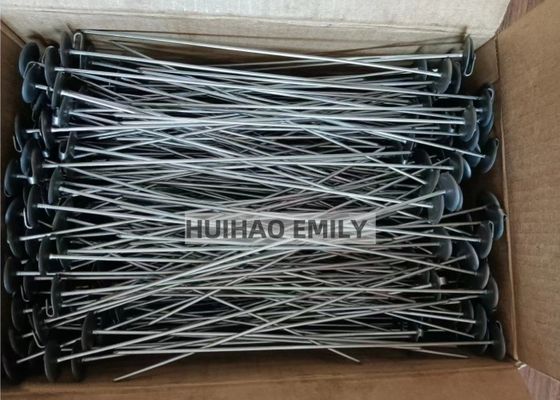

The package of lacing hooks washers : >> Package 1. 500 pcs/800pcs/1000 pcs per carton. 64 cartons per pallet. 2. to be your requirements. |
