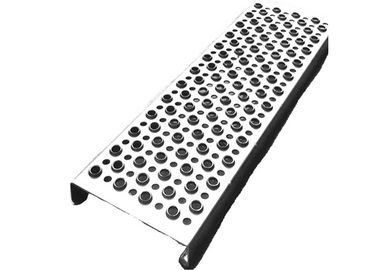

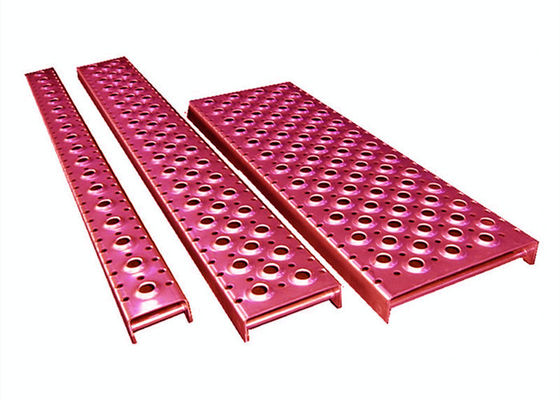

Product Details:
|
| Name: | Grip Strut Grating | Width: | 5", 7", 10", 12", |
|---|---|---|---|
| Depth: | 1 1 /2", 2", | Material: | Aluminum Or Galvanized Steel |
| Hole Type: | Round Hole | Holes Number: | 2, 3, 5, 6, 10, 13, 16 |
| Highlight: | aluminum safety grating,aluminum plank grating |
||
>>> Specification of Aluminum Galvanized Steel Grip Strut Grating , Perforated Grating Stair Treads
| span | material thickness | channel depth | width |
| upto 30" | steel 13ga | 1/2" | 5".7".10",12" |
| upto 48" | steel 11ga | 2" | 5".7".10",12" |
| upto 42" | aluminum 0.125" | 2" | 5".7".10",12" |
 |
|||
| tread wIdth-A | Depth -B | dimension-C | dimension-D |
| 5" | 1-1/2", 2" | 3/4",1" | 2" |
| 7" | 1-1/2", 2" | 3/4",1" | 4" |
| 10" | 1-1/2", 2" | 3/4",1" | 7" |
| 12" | 1-1/2", 2" | 3/4",1" | 9" |
>>> Application Of The Round Hole Aluminum Galvanized Steel Grip Strut Grating , Perforated Grating Stair Treads
Because the grating has high anti skid and resists rust and corrosion features, it is widely used at the rooftop of the train,
industry flooring, platform of the traffic and offshore drilling, etc.
Perforated Steel grip strut grating Used In Indoors Or Outdoors - The circular openings (38% of surface area dep-
ending on product size) are small enough to catch most falling tools and other dangerous objects and the self-cleaning
open design permits quick drainage.
Perforated Steel grip strut grating With Long Life - Sturdy construction provides the advantages of heavy load-carrying
capacity with minimal deflection; rugged durability with longer-lasting performance.
Perforated Steel grip strut grating Is Fast Installation - Light, easy-to-handle planks make installation simple and quick.
Most sections are rapidly bolted, clamped or welded into place.
