Product Details:
|
| Plate Size: | 0*50mm Or As Request | Spindle Diameter: | 2mm-3mm |
|---|---|---|---|
| Spindle Length: | 15mm-180mm | Type: | Self Adhesive |
| Material: | Stainless Steel, Mild Steel, Aluminum | Base Thickness: | 0.4mm |
| Small Order: | Available | Sample: | Support |
| Highlight: | insulation hangers,insulation wall plugs |
||
Base and washer: Pregalvanized steel sheet, Q195 Pin: Q195 wire.
(low carbon steel-plate,also available by special order in all stainless steel or all aluminum)

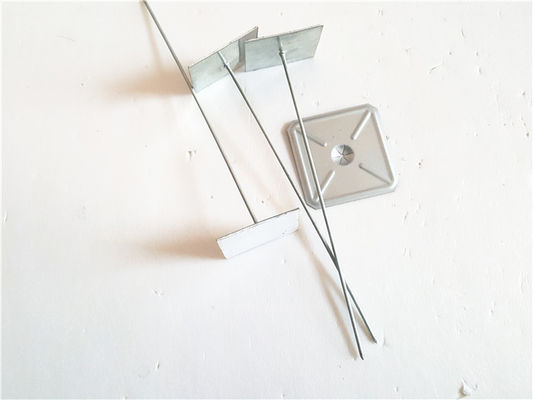

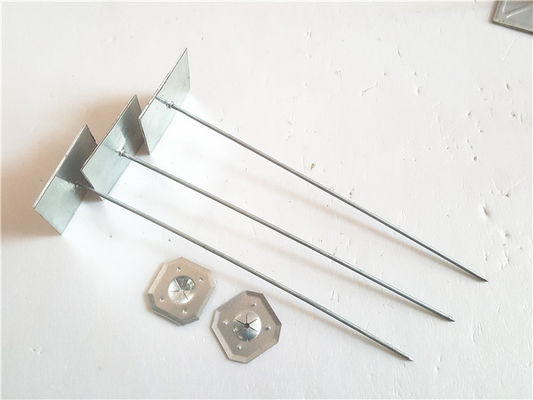

remakes of self adhesive insulation pins
Workmanship and capability according to the approved samples. Keep the verticality of the pin and base, no obvious skew.
No broken edge. No obvious dislocation of the adhensive.
Finishing and Surface:Zinc coating thickness: 9μm min.
Details as per PSS.
Tolerance of the plate thickness: Lower deviation: -0.05mm.
Tolerance of the pin diameter: Lower deviation: -0.10mm.
surface requirements of self adhesive insulation pins
No burr, No dirty mark. No stain.
Keep the pin point sharp, No deformation or curve shape.
No obvious dislocation of the adhensive. No obvious deformation of the base and washer.
| pin diameter | base plate size | insulatiion pin length |
| 12ga ( 0.106 " ) | 2 " square w / tape | 1 " |
| 12ga ( 0.106 " ) | 2 " square w / tape | 1 - 5 / 8 " |
| 12ga ( 0.106 " ) | 2 " square w / tape | 2 " |
| 12ga ( 0.106 " ) | 2 " square w / tape | 2 - 1 / 2" |
| 12ga ( 0.106 " ) | 2 " square w / tape | 3 - 1 / 2" |
| 12ga ( 0.106 " ) | 2 " square w / tape | 4 - 1 / 2" |
| 12ga ( 0.106 " ) | 2 " square w / tape | 5 - 1 / 2" |
| 12ga ( 0.106 " ) | 2 " square w / tape | 6 - 1 / 2" |
| 12ga ( 0.106 " ) | 2 " square w / tape | 8 " |
| 12ga (0.106") | 2" square w / tape | 9" |
| 12ga (0.106") | 2" square w / tape | 11" |
| 12ga (0.106") | 2" square w / tape | 12" |
Use raw materials that meet international standards
Rust-proof surface treatment, long service life
CNC technology, small error range
Smooth surface without burrs
Scientific dimensional design, in line with mechanical standards
Suitable for all kinds of wall
High pull-off strength for a higher security of the system
Low thermal conduction addition value to avoid thermal bridge
Galvanized layer on the steel nail to protect the nail from alkali
