Product Details:
|
| Product Name: | Self Adhesive Insulation Hangers | Material: | Galvanized Steel , Stainless Steel , Aluminum |
|---|---|---|---|
| Pin Dia: | 0.106'' As Standard | Base Size: | 50mmx50mm As Standard |
| Pin Length: | 25mm - 200mm ,could Be Customized | Sticker Color: | White , Red,blue In Common |
| Highlight: | insulation pins and washers,insulation wall plugs |
||

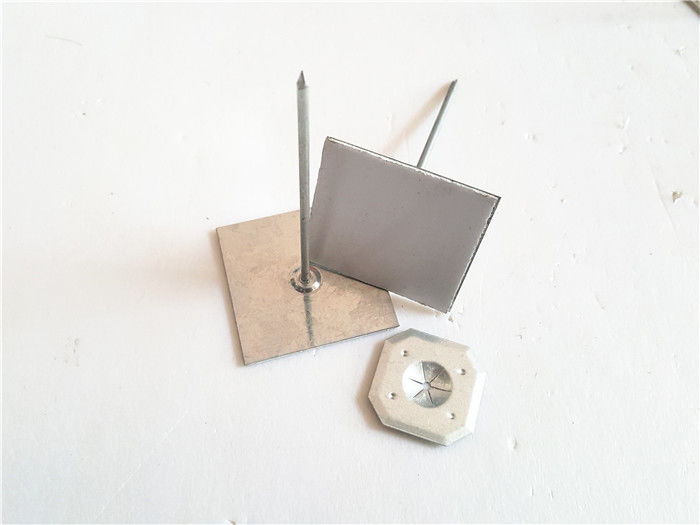

Self Adhesive Insulation Hangers are installed with the double face tape, the insulation is impaled over the spindle & secured
with a self-locking washer.
Self Adhesive Insulation Hangers are designed to fix efficiently insulation on smooth surfaces such as air ducts, attenuators,
chambers and enclosures. It consists of a pin, firmly mounted on a high quality self adhesive base.
Material:Galvanized steel in common, also could be stainless steel and aluminum
Tape color: red, white, blue, etc
| Pin diameter | Base size | Pin length in common | Clips Size |
| 12 Ga (2.7mm or 0.106'') | 50mmx50mm | 1'' | 22mm - 40mm, 35mm in common |
| 12 Ga (2.7mm or 0.106'') | 50mmx50mm | 2'' | 22mm - 40mm, 35mm in common |
| 12 Ga (2.7mm or 0.106'') | 50mmx50mm | 2 1 / 2'' | 22mm - 40mm, 35mm in common |
| 12 Ga (2.7mm or 0.106'') | 50mmx50mm | 3 1 / 2'' | 22mm - 40mm, 35mm in common |
| 12 Ga (2.7mm or 0.106'') | 50mmx50mm | 4'' | 22mm - 40mm, 35mm in common |
|
12 Ga (2.7mm or 0.106'') |
50mmx50mm | 5 1 / 2'' | 22mm - 40mm, 35mm in common |
| 12 Ga (2.7mm or 0.106'') | 50mmx50mm | 8'' | 22mm - 40mm, 35mm in common |
| The Self Stick Adhesive Insulation Anchors also could be produced as request via from material, pin dia and length. | |||
1. Environmentally-friendly
2. Light, dust free, fire retardant and easy to install
3. Heat reflection, heat insulation, sound insulation, counter radiation, counter vibration and shielding
4. During Summer: moisture barrier, sun protection, waterproof, energy saving consumed by cool air conditioning
5. During Winter: heat protection, remarkable energy saving consumed by warm air conditioning
The pins could have washers together
These hangers are designed to mechanically hold insulation material to various surfaces. It is very important for the
user to determine the suitability of this product for each application. Discretion must be used in application, and we
recommend that the user first perform a test application to satisfy himself of the desirability of using the product for
the user’s particular purpose.
The user is responsible for determining the suitability of the application. Hangers must be applied to a clean, dry,
non-porous surface that is free of all oil, films, dust, rust, etc. Self-adhering hangers are not recommended for concrete
or painted surfaces. It is important that they not be used where operating temperatures can exceed 150° F at the point of
adhesion. Hangers should not be used on ceilings or roofs of metal buildings or any surface the reverse side of which
may be exposed to heat concentration from sunlight, etc., direct or otherwise. Load per anchor should not exceed 3 lbs.
Best results are obtained when ambient temperature is above 40° F at the time of application. Remove the release paper
from the base plate and apply hanger to a suitable flat surface. A firm straight, forward pressure should be used. Do not twist.
Due to the quick-tack nature of the adhesive, it is very important that the release paper not be removed until ready to apply the
hanger. Insulation may be applied immediately after properly securing the hanger. Hangers should be stored at 75° F and 50%
relative humidity. It is important that stock be rotated. Shelf life is estimated at 2 years if stored as recommended.
Packaging methods of the Self Adhesive Insulation Hangers
The default packaging way is bulk packing or small boxes packing in cartons then on Pallets.
We can assist you in determining the most effective packaging style, material, and size for your unique products or as your requirement.
