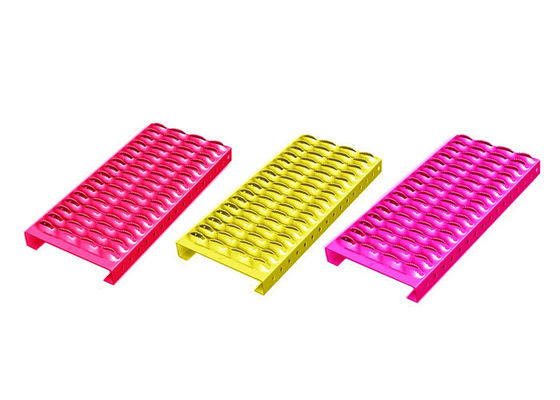

50mm Aluminum Alloy Grip Strut Grating Platforms

Large Image : 50mm Aluminum Alloy Grip Strut Grating Platforms

Product Details:

Place of Origin:	China
Brand Name:	huihao
Certification:	ISO9001-2015
Model Number:	HH- Platforms

Payment & Shipping Terms:

Minimum Order Quantity:	30
Packaging Details:	pallet or case
Delivery Time:	7 work days
Payment Terms:	L/C, T/T
Supply Ability:	3000 pcs per month

Contact Now

50mm Aluminum Alloy Grip Strut Grating Platforms

Description

Name:	Grip Strut Safety Grating Platforms	Material:	Aluminum Alloy, GS, SS
Thickness:	2mm, 2.5mm, 3mm	Height:	50mm, 75mm, 100mm
Aperture:	75mmx30mm	Width:	300mm-800mm
Length:	Less Than 6000mm	Color:	Support
Highlight:	grip strut grating platforms , aluminum alloy grip strut grating , 50mm Grip Strut Grating

Custom Grip Strut Safety Grating Platforms For Safest Walking Working Surfaces

Grip Strut Safety Grating Platforms also saves with its long-lasting, rust-resisting materials and finishes. Standard mill-galvanized finish

resists corrosion to provide lasting surfaces. High-strength aluminum and Types 304 and 316L stainless steel are available to provide

maximum corrosion resistance. Black unpainted steel available for installations requiring hot dipped galvanized finish after fabrication.

material choose of grip strut safety grating platforms

pre-galvanized carbon steel.
HRPO carbon steel.
5052-H32 mill finish aluminum.
stainless steel 304 or 316.

applications of Custom Grip Strut Safety Grating Platforms

Working platforms. Catwalks. Walkways. Stair treads. Floors. Mezzanine.

drawing design of Custom Grip Strut Safety Grating Platforms For Safest Walking Working Surfaces

specification details of Custom Grip Strut Safety Grating Platforms For Safest Walking Working Surfaces

2 Diamond / 9-1/4" Width
Diamond Pattern	Width	Channel Depth	galvanized	Aluminum
2 Diamonds	9-1/4	2	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080), 10 Ga. (.100)
	9-1/4	2-1/2	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080), 10 Ga. (.100)
	9-1/4	3	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080), 10 Ga. (.100)
	9-1/4	4	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080), 10 Ga. (.100)

3 Diamond / 13-3/4" Width
Diamond Pattern	Width	Channel Depth	galvanized	Aluminum
3 diamonds	13-3/4	2	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080), 10 Ga. (.100)
	13-3/4	2-1/2	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080), 10 Ga. (.100)
	13-3/4	3	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080), 10 Ga. (.100)
	13-3/4	4	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080), 10 Ga. (.100)

5 Diamond / 23-1/4" Width
Diamond Pattern	Width	Channel Depth	galvanized	Aluminum
5 diamonds	23-1/4	2	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080), 10 Ga. (.100)
	23-1/4	2-1/2	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080), 10 Ga. (.100)
	23-1/4	3	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080), 10 Ga. (.100)
	23-1/4	4	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080), 10 Ga. (.100)

6 Diamond / 27-3/4" Width
Diamond Pattern	Width	Channel Depth	galvanized	Aluminum
6 diamonds	27-3/4	2	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080), 10 Ga. (.100)
	27-3/4	2-1/2	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080), 10 Ga. (.100)
	27-3/4	3	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080), 10 Ga. (.100)
	27-3/4	4	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080), 10 Ga. (.100)

8 Diamond / 36" Width
Diamond Pattern	Width	Channel Depth	galvanized	Aluminum
8 diamonds	36	1-1/2	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080), 10 Ga. (.100)
	36	2	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080), 10 Ga. (.100)
	36	2-1/2	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080), 10 Ga. (.100)
	36	3	11 Ga., 10 Ga., 9Ga.	12 Ga. (.080), 10 Ga. (.100)

weight of Custom Grip Strut Safety Grating Platforms For Safest Walking Working Surfaces

weight per meter of Huihao Anti-slip Gratings
material	stainless steel			galvanized steel			aluminum alloy 5754
thickness	2mm			2.5mm			3.0mm
	height			height			height
standard width	50mm	75mm	100mm	50mm	75mm	100mm	50mm	75mm	100mm
300mm	6.2kg	7.0kg	7.8kg	7.7kg	8.7kg	9.7kg	3.1kg	3.6kg	4kg
400mm	7.6kg	8.4kg	9.2kg	9.4kg	10.4kg	11.4kg	3.8kg	4.2kg	4.7kg
500mm	8.9kg	9.7kg	10.5kg	11kg	12kg	13kg	4.5kg	4.9kg	5.3kg
600mm	10.3kg	11.1kg	11.9kg	12.7kg	13.7kg	14.7kg	5.2kg	5.6kg	6.0kg
700mm	11.6kg	12.4kg	13.2kg	14.4kg	15.4kg	16.4kg	5.9kg	6.3kg	6.7kg
800mm	12.9kg	13.7kg	14.5kg	16.1kg	17.1kg	18.1kg	6.6kg	7.0kg	7.4kg

Installation of Custom Grip Strut Safety Grating Platforms For Safest Walking Working Surfaces

50mm Aluminum Alloy Grip Strut Grating Platforms 1

Clamp prevents grating from shifting on supports. Holds pieces together with or without clearance between panels. All bolts are below top

surface of grating. No holes are drilled in supporting members. Assembly consists of anchor plate, 2 J-bolts, nuts and washers all electro

zinc plated. Standard finish is hot dipped galvanized before fabrication.

50mm Aluminum Alloy Grip Strut Grating Platforms 2
