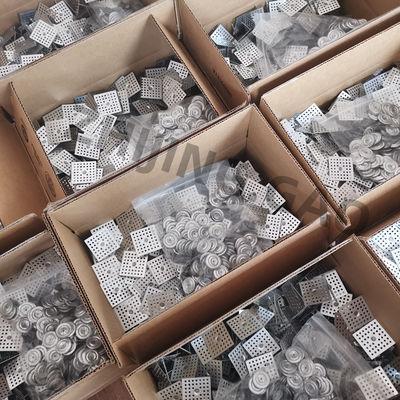

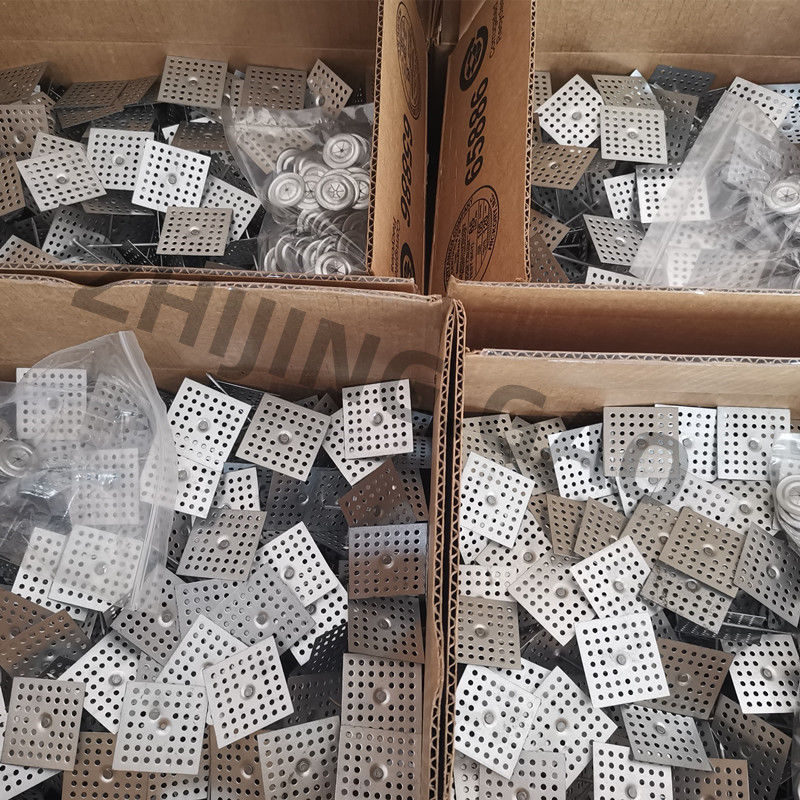

Stainless Steel Perforated Base Insulation Pins 62.5MM

it is one kind of rock wool insulation pin, and the base size can be customized , in common the size is 50mm (2")

Quick Details of perforated base insulation pins

• 1)Making installation more easier and more convenient, saving time and labor cost.

  2)All size and shape products will be made according to customers' drawings.

  3)Durable material,anti-corrosion and anti-rust. soft nails for easily bending

• Base size in common: 40mmx40mm, 50mmx50mm

• Pin diameter: 2mm, 2.5mm, 2.7mm, 3mm and 10ga (3.4mm)

• Pin length: 15MM-280MM. the common length is 38mm, 63mm, 90mm, 120mm, 140mm, 160mm, 180mm, 203mm, 230mm

• surface treatment: zinc coated or copper coated for mild steel material

Description details of the perforated base insulation pins

Perforated base insulation pins are all metal fire resistant anchor that is both fast and easy to install.
Perforated base insulation pins is suitable for insulation materials such as mineral wool, EPS, XPS and fibreglass.

Specification details of Perforated base insulation pins

Features of perforated base insulation pins

• Can be used to retain any type of insulation (pierced by the insulation fasteners pin)

• insulation fasteners available for different fixing methods: self adhesive (pressure-sensitive adhesive), or using suitable adhesive

• One type of pin can be used to hang multiple types of insulation

• Simple and easy to apply

• Low-cost assembly

• Reduced inventory needs

• Available in stainless steel, galvanised steel, aluminium

Self locking washers locked with perforated base insulation pins
