Product Details:
|
| Name: | Spindle Insulation Anchors | Spindle Length: | 15mm -280 Mm |
|---|---|---|---|
| Spindle Thickness: | 2.7mm And 3mm In Common | Base Thickness: | 0.5mm |
| Base Size: | 24mm, 40mm, 50mm In Common | Spindle Material: | Aluminum, Steel, Stainless Steel |
| Base Material: | Steel, Stainless Steel | Finished: | Zinc Coated, Copper Coated |
| Highlight: | Base Spindle Insulation Anchors,Aluminum Steel Spindle Insulation Anchors |
||

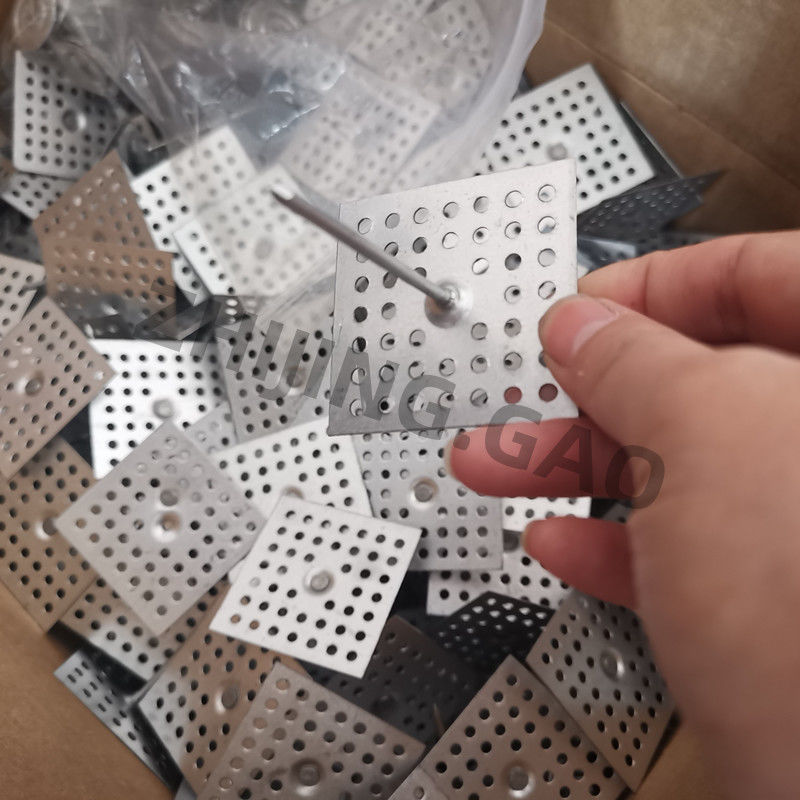

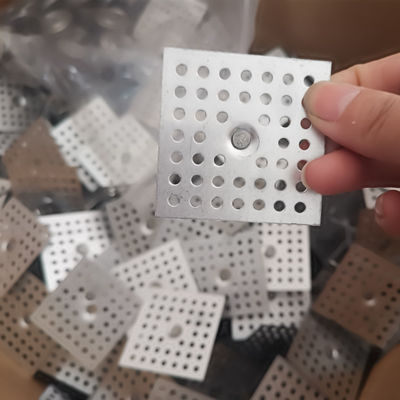

Insulation Hangers With Perforated Base Fixing Insulation Material To Wall & Ceiling
Base size in common: 40mmx40mm, 50mmx50mm
Pin diameter in common: 2mm, 2.5mm, 2.7mm, 3mm and 10ga (3.4mm)
Pin length in common: 50mm, 63mm, 90mm, 114mm, 125mm, 175mm, 203mm, 230mm
Surface treatment: zinc coated or copper coated for mild steel material
| perforated base rock wool insulation pins | ||
| pin diameter | Perforated base | pin length |
| 12 ga (.106) | 40mm /50mm Square | 1 |
| 12 ga (.106) | 40mm /50mmSquare | 1-5/8 |
| 12 ga (.106) | 40mm /50mm Square | 2-1/2" |
| 12 ga (.106) | 40mm /50mm Square | 3-1/2" |
| 12 ga (.106) | 40mm /50mm Square | 4-1/2" |
| 12 ga (.106) | 40mm /50mm Square | 5-1/2" |
| 12 ga (.106) | 40mm /50mm Square | 6-1/2" |
| 12 ga (.106) | 40mm /50mm Square | 8" |
| 12 ga (.106) | 40mm /50mm Square | 8-1/2" |
| 12 ga (.106) | 40mm /50mm Square | 9-1/2" |
| 12 ga (.106) | 40mm /50mm Square | 10-1/2" |
| 12 ga (.106) | 40mm /50mm Square | 12" |
1. Wipe surface clean
Perforated insulation hangers must be applied to a clean, dry, non-painted surface.
2. Apply adhesive to the bottom of the perforated insulation hangers
Spread adhesive onto the perforated base with a putty knife
3. immediately stick the insulation hangers in place.
Press the hangers into position with a twisting motion to assure an even spread of adhesive.
The adhesive should protrude through the performation & beyond the edges of base
4. Install Insulation
Note: allow adhesive to dry thoroughly before hanging insulation, usually 24-72 hours.
5. Secure with washers
Secure insulation in place with a self locking washer and then bend over or clip off the pin
|
PIN LENGTH |
CARTON SIZE |
QTY/CARTON |
|
38MM |
41CMX28CMX17CM |
1000PCS |
|
50MM-65MM |
41CMX28CMX17CM |
500PCS |
|
70MM-84MM |
30CMX28CMX29CM |
500PCS |
|
90MM-120MM |
30CMX30CMX30CM |
500PCS |
|
130MM-160MM |
30CMX30CMX35CM |
500PCS |
|
170MM-203MM |
30CMX30CMX28CM |
250PCS |
|
OTHERS |
SUPPORT CUSTOM |
|
|
|
||
1.We choose the best quality materials for making insulation fasteners
2.We do copper plating, zinc coated and phosphating pretreatment for the raw material using
drawing machine.
3.We purchase the multi-station cold forging machine to ensure the better mechanical property
of shear connector to match the standard (BS EN ISO13918:2008, AWS D1.1, etc.),
or as per customer's special requirement.
4.We use the automatic riveting machine to install .
5.After rust prevention, HUIHAO insulation fasteners can suitable for long time ship on the sea.
6.Short delivery time because of our reasonable production flow management
