Product Details:
|
| Name: | SS Lacing Anchor Fastener | Length: | 114mm |
|---|---|---|---|
| Pin Diameter: | 14 Ga, 12 Ga | Anchor Head: | 22mm X1mm |
| Material: | Stainless Steel 304 | Lacing Washer: | 25mm |
| Lacing Hook: | 22mm | Speed Washer: | 25mm |
| Highlight: | SS Lacing Anchor Fastener,114 MM Insulation Jacket Fastener |
||

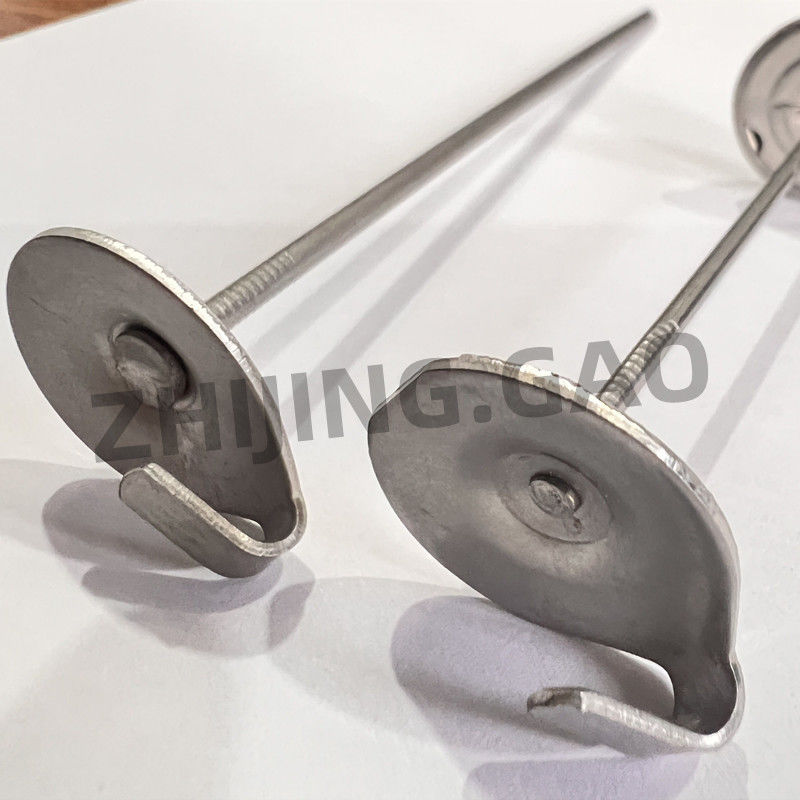

The Lacing Anchor is a fabricated metal anchor consisting of a pin and tabbed or hooked washer
Stainless steel is a popular material while some Lacing Anchors are made in Mild steel .
Stamped “no ab “ to denote “no asbestos “
The tab head is 7/8" in diameter.
The nail portion can be 12 gauge or 14 gauge in diameter.
Making installation more easier and more convenient, saving time and labor cost.
All size and shape products will be made according to customers' drawings.
Durable material,anti-corrosion and anti-rust
| anchor type | head size | pin diameter | pin length | material |
| Min round head | 22 mm | 2mm, 2.2mm, | 38mm - 203mm | SS, MS |
| round head | 30 mm | 2mm, 2.2mm, 2.7mm | 100mm - 300mm | SS, MS |
| oblong head | 20 x 25mm | 2mm, 2.2mm | 38mm - 203mm | SS, MS |
| Material of lacing anchors | Pin: Stainless steel, Stainless steel |
| Base: High strength galvanzied steel, stainless steel | |
| Surface treatment | Polishing, galvanzied plating |
| features of lacing anchor | Firm conjunction between pins and bases |
| Pins are soft, easy bending over | |
| Excellent stickness for double-sided adhesive property | |
| Length tolerance ±0.1mm | |
| Production workmanship | Automated production |
| External weather proof, High-Temperature Resistant Fiber Corrosion Neutral Adjustable Strap & Buckle, lacing wire. | |
| Lacing rings | material: stainless steel 304 / 316 |
| type: weld type or unweld type all avalible | |
| size: 3mm x 30mm | |
| Self locking washer | material: SS, MS. G.S |
| Types: round type and square type | |
| size in standard: 30mm, 38mm | |
| Dome cap washer | material: SS, MS, G.S |
| Standard size: 22mm, 27mm, 30mm, 40mm | |
