Product Details:
|
| Name: | Stainless Steel Perforated Insulation Pins | Brand: | Huihao Custom |
|---|---|---|---|
| Base Material: | Galvanized Steel Or Stainless Steel | Base Size: | 40x40mm, 50x50mm Etc. |
| Pin Material: | Galvanized Steel Or Stainless Steel Or Aluminum | Base Thickness: | 0.4mm, Etc. |
| Product Customization: | Support | Pin Diameter: | 2.7mm, 3.0mm, 3.4mm Etc. |
| Samples: | Support | Pin Length: | 1" - 12" |
| Highlight: | Perforated Insulation Pins,Fiberglass Board Insulation Pins,Mineral Wool Board Insulation Pins |
||
Perforated insulation pins are used to impal and install various acoustic materials such as
fiberglass boards or mineral wool boards.
Perforated insulation pins are made of a metal base with a vertical pin attached, the pin is
riveted on the metal base, so the perforated insulation pins are very strong.
Self-locking washers are needed to lock the material to the pin, Xiangyi's self locking washers
are very hard, it could lock the perforated insulation pins very firmly.
|
Material available |
|
|
Pin material |
-mild steel: must be annealed treatment, easy for bend; zinc coated/copper plated finished for anti-rust -aluminum 1100 grade -annealed stainless steel for specification |
|
Base |
Galvanized steel, stainless steel |
|
Common size details |
|||
|
Pin diameter |
Pin length |
Base thickness |
Base size |
|
12ga(2.7mm) |
1”-12” |
0.4mm |
50x50mm/40x40mm |
|
3mm |
1”-12” |
0.4mm |
50x50mm/40x40mm |
|
10ga(3.4mm) |
1”-12” |
0.4mm |
50x50mm/40x40mm |
|

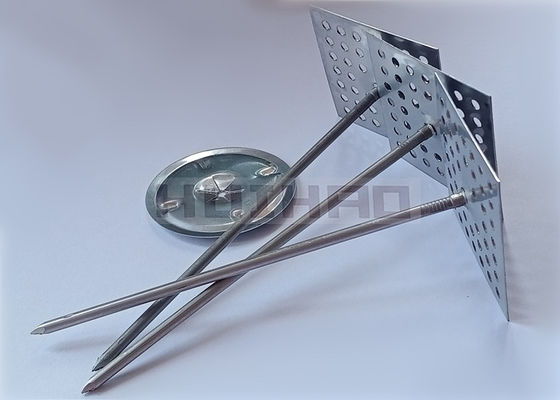

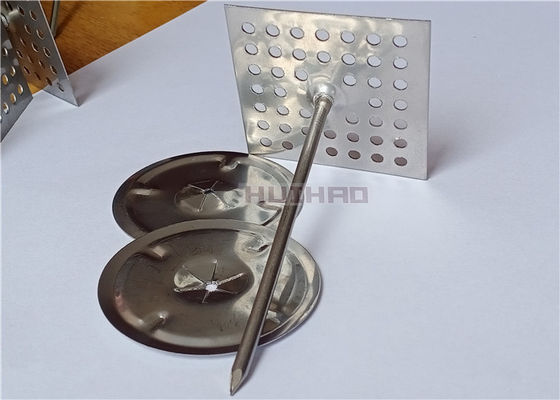

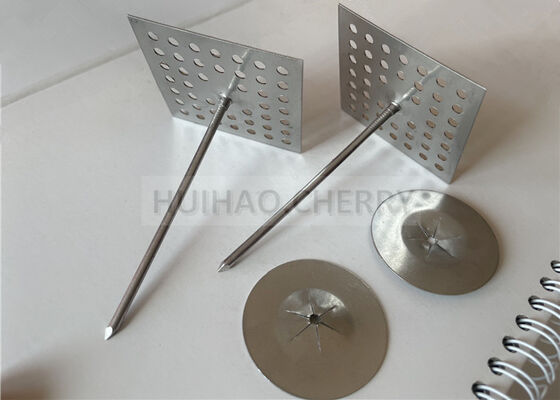

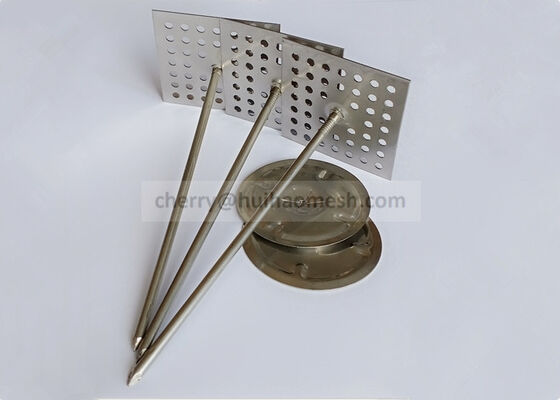

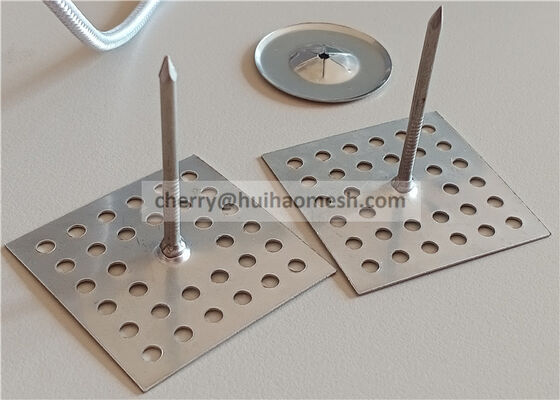

Imges Of The Perforated Base Insulation Hangers |
|
 |
* Application specific design
* Corrosion resistance
* Efficiency
* Eco friendly product
* Weather proof
* Long serving life
* Sturdy construction
|
PIN LENGTH |
CARTON SIZE |
QTY/CARTON |
|
38MM |
41CMX28CMX17CM |
1000PCS |
|
50MM-65MM |
41CMX28CMX17CM |
500PCS |
|
70MM-84MM |
30CMX28CMX17CM |
500PCS |
|
90MM-120MM |
30CMX30CMX30CM |
500PCS |
|
130MM-160MM |
30CMX30CMX30CM |
500PCS |
|
170MM-203MM |
30CMX30CMX30CM |
250PCS |
|
OTHERS |
SUPPORT CUSTOM |
|
|
||
1. We choose the best quality materials for making insulation fasteners
2. We do copper plating, zinc coated and phosphating pretreatment for the raw material using
drawing machine.
3. We purchase the multi-station cold forging machine to ensure the better mechanical property
of shear connector to match the standard (BS EN ISO13918:2008, AWS D1.1, etc.), or as per
customer's special requirement.
4. We use the automatic riveting machine to install .
5. After rust prevention, HUIHAO insulation fasteners can suitable for long time ship on the sea.
6. Short delivery time because of our reasonable production flow management
