Product Details:
|
| Name: | Metal Lacing Anchor Fasteners | Pin Dia: | 14GA, 12GA |
|---|---|---|---|
| Pin Length: | 62mm, 114mm, 125mm, 160mm | Hook Size: | 22mm |
| Washer: | 25mm | Ring: | 30MM |
| Material: | MS, SS | Factory: | Huihao Hardware |
| Highlight: | Metal Lacing Anchor Fasteners |
||

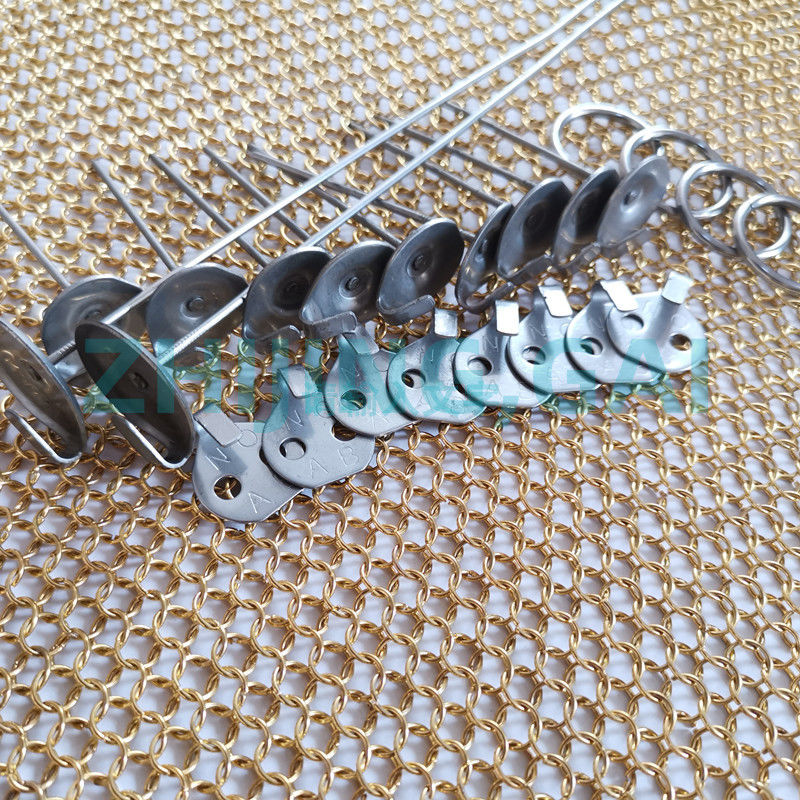

The Lacing anchor fastener is a key accessory used in the fabrication of lacing blankets or removable blankets. They are essentially large nails with hooked heads consisting of a pin and a tabbed, or hooked washer. Stainless steel is the more popular material it is manufactured from, but it's also available in mild steel. Stamped "no ab" to denote "no asbestos", the tab head is 7/8" in diameter. The nail portion can be 12 gauge or 14 gauge in diameter.
| anchor type | head size | pin diameter | pin length | material |
| Min round head | 22 mm | 2mm, 2.2mm, | 38mm - 203mm | SS, MS |
| round head | 30 mm | 2mm, 2.2mm, 2.7mm | 100mm - 300mm | SS, MS |
| oblong head | 20 x 25mm | 2mm, 2.2mm | 38mm - 203mm | SS, MS |

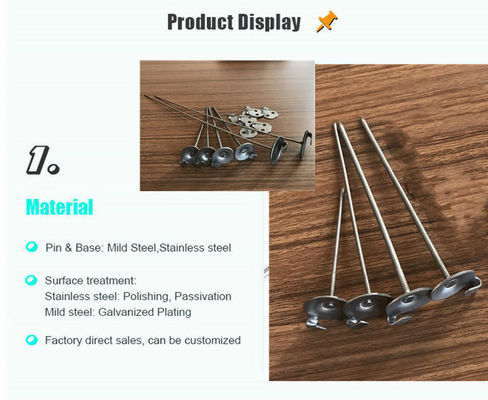

| Material of lacing anchors | Pin: Stainless steel, Stainless steel |
| Base: High strength galvanzied steel, stainless steel | |
| Surface treatment | Polishing, galvanzied plating |
| features of lacing anchor | Firm conjunction between pins and bases |
| Pins are soft, easy bending over | |
| Excellent stickness for double-sided adhesive property | |
| Length tolerance ±0.1mm | |
| Production workmanship | Automated production |
| External weather proof, High-Temperature Resistant Fiber Corrosion Neutral Adjustable Strap & Buckle, lacing wire. | |
| Lacing rings | material: stainless steel 304 / 316 |
| type: weld type or unweld type all avalible | |
| size: 3mm x 30mm | |
| Self locking washer | material: SS, MS. G.S |
| Types: round type and square type | |
| size in standard: 30mm, 38mm | |
| Dome cap washer | material: SS, MS, G.S |
| Standard size: 22mm, 27mm, 30mm, 40mm | |
HUIHAO is focusing develop and sale insulation fasteners than more 10 years, the headquarters office is in RAYANG, China. We have more than 80 worker in producing team, 10 technical and service team, production capacity is 100,000pcs, in order to provide best service, we have double inspection service from 2011year, any time and any place, you can contact us, we will respond immediately.
