Product Details:
|
| Name: | Perforated Base Insulation Hangers | Brand: | Huihao Custom |
|---|---|---|---|
| Base Material: | Galvanized Steel Or Stainless Steel | Base Size: | 40x40mm, 50x50mm Etc. |
| Pin Material: | Galvanized Steel Or Stainless Steel Or Aluminum | Base Thickness: | 0.4mm, Etc. |
| Product Customization: | Support | Pin Diameter: | 2.7mm, 3.0mm, 3.4mm Etc. |
| Samples: | Support | Pin Length: | 1" - 12" |
| Highlight: | Acoustic Insulation Materials Hangers,Fixing Acoustic Insulation Hangers,Fixing Acoustic Insulation Materials Hangers |
||
Perforated Base Insulation Hangers is made of a perforated metal base attached to a metal pin.
The 2" x 2" base is fabricated out of metal with the pin attached for impaling and installing
various acoustic insulation materials.
|
Material available |
|
|
Pin material |
-mild steel: must be annealed treatment, easy for bend; zinc coated/copper plated finished for anti-rust -aluminum 1100 grade -annealed stainless steel for specification |
|
Base |
Galvanized steel, stainless steel |
|
Common size details |
|||
|
Pin diameter |
Pin length |
Base thickness |
Base size |
|
12ga(2.7mm) |
1”-12” |
0.4mm |
50x50mm/40x40mm |
|
3mm |
1”-12” |
0.4mm |
50x50mm/40x40mm |
|
10ga(3.4mm) |
1”-12” |
0.4mm |
50x50mm/40x40mm |
|

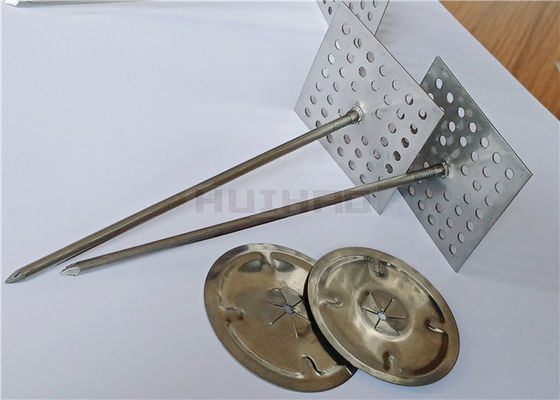

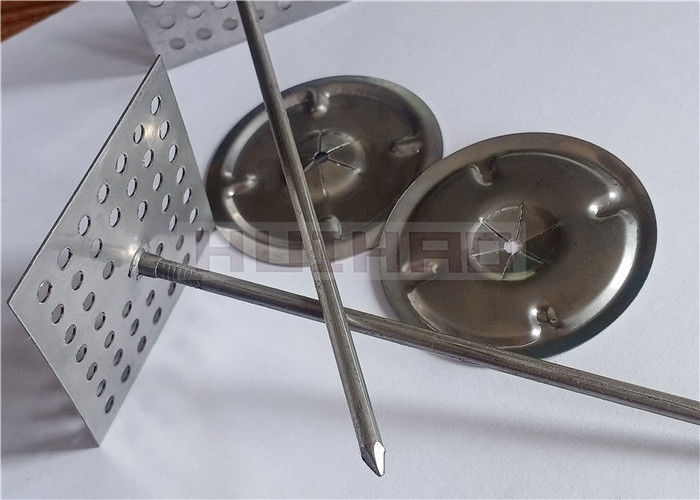

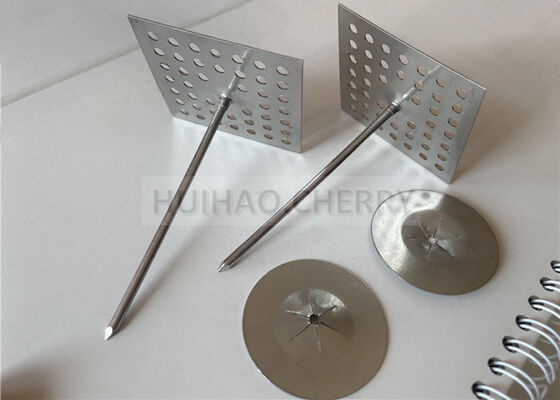

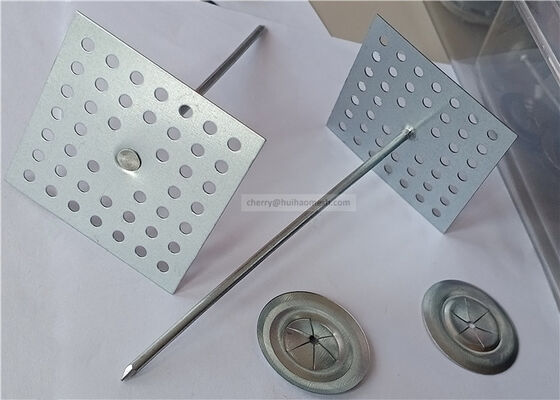

Imges Of The Perforated Base Insulation Hangers |
|
|
Features:
* Application specific design * Corrosion resistance * Efficiency * Eco friendly product * Weather proof * Long serving life * Sturdy construction |
 |
|
Self Locking Washers Used To Fasten Perforated Base Insulation Hangers |
|||
| type | size | material | center hole |
| round | 25mm | galvanized steel, stainless steel, aluminum | 2mm-5mm |
| round | 30mm | galvanized steel, stainless steel, aluminum | 2mm-5mm |
| round | 32mm | galvanized steel, stainless steel, aluminum | 2mm-5mm |
| round | 38mm | galvanized steel, stainless steel, aluminum | 2mm-5mm |
| square | 32mmx32mm | galvanized steel, stainless steel, aluminum | 2mm-5mm |
| square | 29mmx31mm | galvanized steel, stainless steel, aluminum | 2mm-5mm |
| square | 38mmx38mm | galvanized steel, stainless steel, aluminum | 2mm-5mm |
| square | 50mmx50mm | galvanized steel, stainless steel, aluminum | 2mm-5mm |
| square | 65mmx65mm | galvanized steel, stainless steel, aluminum | 2mm-5mm |
| dome cap | 30mm | galvanized steel, stainless steel, aluminum | 2mm-5mm |
| dome cap | 32mm | galvanized steel, stainless steel, aluminum | 2mm-5mm |
| dome cap | 38mm | galvanized steel, stainless steel, aluminum | 2mm-5mm |
| dome cap | 40mm | galvanized steel, stainless steel, aluminum | 2mm-5mm |
| dome cap | 50mm | galvanized steel, stainless steel, aluminum | 2mm-5mm |
|
|||
|
1. Wipe surface clean 2. Glue the base of the perforated insulation hangers 3. Stick perforated insulation hangers in place 4. Pierce the insulation onto the pins 5. Push the washer onto the pin to hold the insulation in place 6. Bend over the remaining part of the pin if necessary |
|

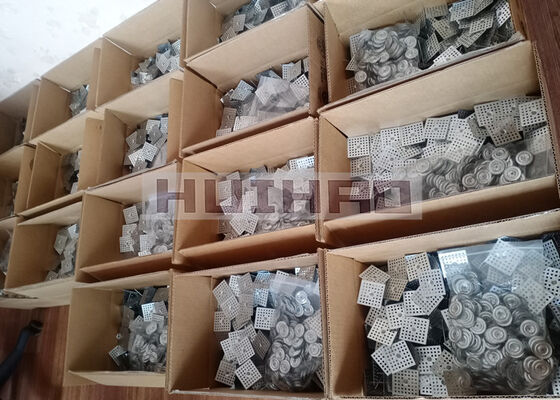

| PIN LENGTH | CARTON SIZE | QTY/CARTON |
| 38MM | 41CMX28CMX17CM | 1000PCS |
| 50MM-65MM | 41CMX28CMX17CM | 500PCS |
| 70MM-84MM | 30CMX28CMX29CM | 500PCS |
| 90MM-120MM | 30CMX30CMX30CM | 500PCS |
| 130MM-160MM | 30CMX30CMX35CM | 500PCS |
| 170MM-203MM | 30CMX30CMX28CM | 250PCS |
| OTHERS | SUPPORT CUSTOM | |
|
||
| 1. We choose the best quality materials for making insulation fasteners 2. We do copper plating, zinc coated and phosphating pretreatment for the raw material using drawing machine. 3. We purchase the multi-station cold forging machine to ensure the better mechanical property of shear connector to match the standard (BS EN ISO13918:2008, AWS D1.1, etc.), or as per customer's special requirement. 4. We use the automatic riveting machine to install . 5. After rust prevention, HUIHAO insulation fasteners can suitable for long time ship on the sea. 6. Short delivery time because of our reasonable production flow management. |
|
