Product Details:
|
| Name: | Insulation Fixing Lacing Anchors | Material: | Stainless Steel, Mild Steel |
|---|---|---|---|
| Pin Dia: | 12GA, 14GA | Pin Length: | 50mm-300mm |

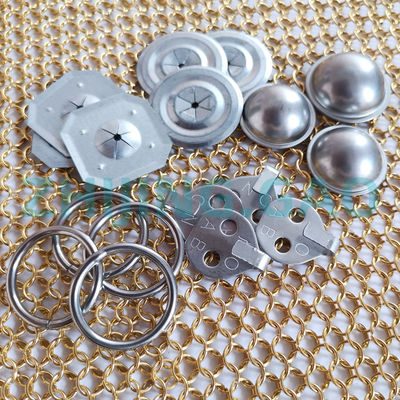

| Hook Head: | 22mm, 30mm | Other Parts: | Lacing Hook, Lacing Washer, Lacing Ring |
| Application: | Connect Parts For Insulation Blanket Pad | Factory: | Huihao Hardware |
| Highlight: | Hook Head Turbo Flange Covers,Removable Turbo Flange Covers,Insulation Fixing Lacing Anchors |
||

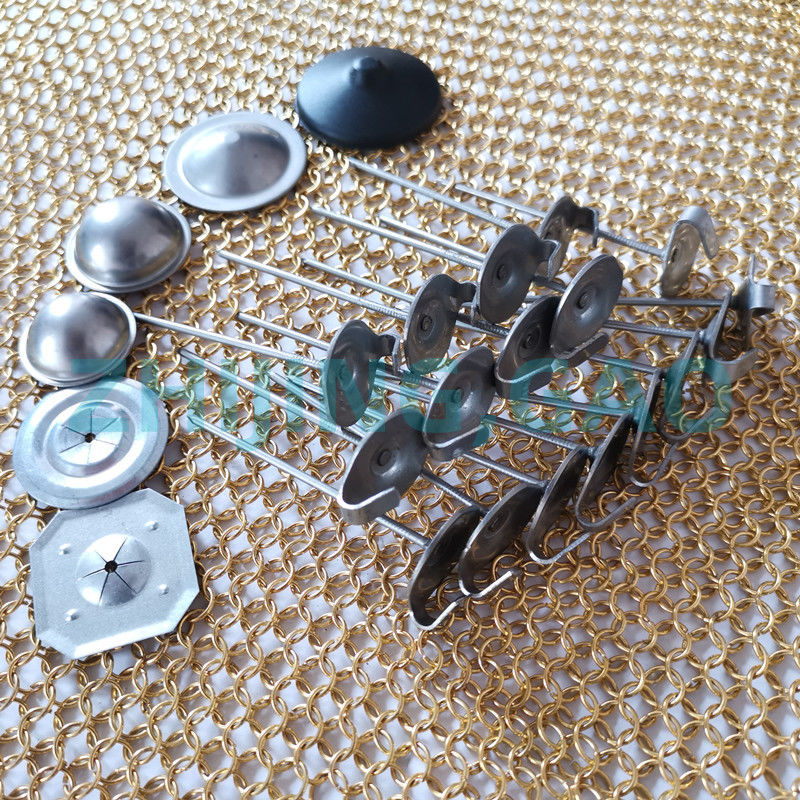

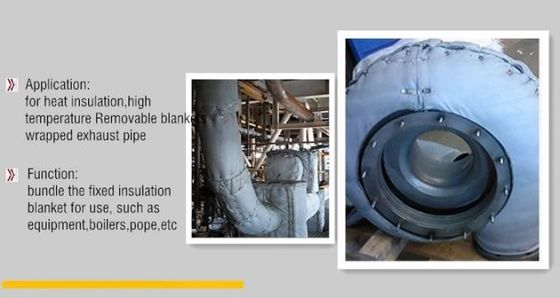

Lacing Anchors are used in the fabrication of insulation blankets or removable covers/pads. The nail is pressed through the insulation material, so the hook portion sits on the top edge and the nail is secured on the opposite side of the insulation with a washer. The two sides of the blanket can then be "laced" together by the hooks with tie wire.
| hook head size | hook material | pin diameter | pin length |
| 22 mm | mild steel, stainless steel | 1.8mm, 2 mm | 38 mm -160 mm |
| 30 mm | mild steel, stainless steel | 2 mm, 2.2 mm, 2.5mm | 100 mm - 250 mm |
| custom | custom | custom | custom |
| Name | Removable Blankets Fixing Glasswool Stainless Steel Lacing Anchor |
| Production workmanship | Automated production |
| Standard type |
|
| Material | stainless steel 304 / 316 |
| pin material treatment | anneaded stainless steel wire |
| Pin diameter | 2mm, 2.2 mm, 2.7 mm , 3.0mm in standard |
| head size | 1mm x 22mm , 1 mm x 30mm |
| Install parts | lacing hooks, lacing washer, dome cap, tie wire |
| Features |
|
