Product Details:
|
| Name: | Perforated Insulation Fixing Pins For Attaching Insulation Materials | Brand: | Huihao Custom |
|---|---|---|---|
| Base Material: | Galvanized Steel Or Stainless Steel | Base Size: | 40x40mm, 50x50mm Etc. |
| Pin Material: | Galvanized Steel Or Stainless Steel Or Aluminum | Base Thickness: | 0.4mm, Etc. |
| Product Customization: | Support | Pin Diameter: | 2.7mm, 3.0mm, 3.4mm Etc. |
| Samples: | Support | Pin Length: | 1" - 12" |
| Highlight: | Attaching Insulation Materials Fixing Pins |
||

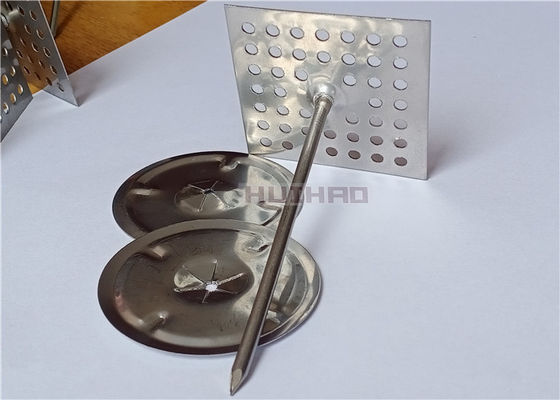

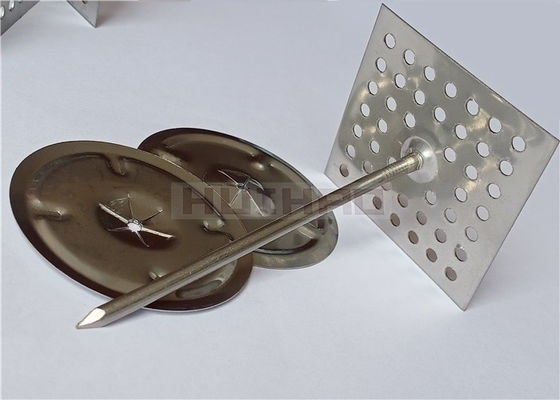

Perforated Insulation Fixing Pins are used to fasten insulation material to walls and ceilings.
Perforated Insulation Fixing Pins have a 2" square steel base which is perforated with
nail sized holes. The holes/perforations allow a screw or nail to be easily installed to a
wall/ceiling.
These perforations are specifically designed for use with Pin Adhesive. The Pin Adhesive is
applied to the back of the pin base in nickel sized glob.
When the pin is pressed against a wall/ceiling, the adhesive will come through the penetrations
creating a solid bond. Once the pin is fastened or the adhesive cured, the insulation can be
pierced onto the pin which is attached to the perforated base. A self locking washer is then
placed onto the pin to securely hold the insulation in place. The excess pin length can then
be trimmed with channellock end cutters.
|
Name: 2-1/2" Stainless Steel Perforated Insulation Fixing Pins Used For Attaching Insulation Materials Brand: HUIHAO CUSTOM Base Material: stainless steel Base Size: 50x50mm Base Thickness: 0.4-0.5mm Pin Diameter: 2.7mm Pin Length: 2-1/2" / 63.5mm Self locking washers: As your requirement
|
 |
Base size in common: 40mmx40mm, 50mmx50mm
Pin diameter in common: 2mm, 2.5mm, 2.7mm, 3mm and 10ga (3.4mm)
Pin length in common: 50mm, 63mm, 90mm, 114mm, 125mm, 175mm, 203mm, 230mm
Surface treatment: zinc coated or copper coated for mild steel material
|
Material available |
|
|
Pin material |
-mild steel: must be annealed treatment, easy for bend; zinc coated/copper plated finished for anti-rust -aluminum 1100 grade -annealed stainless steel for specification |
|
Base |
Galvanized steel, stainless steel |
|
Common Size Details |
|||
|
base type |
pin diameter |
pin length |
material thickness |
|
25 mm x 25 mm |
1.8 mm , 2.0 mm |
20 mm - 114mm |
0.4-0.5 mm |
|
40 mm x 40 mm |
2.5 mm, 2.7mm |
20 mm -180mm |
0.4-0.5 mm |
|
50 mm x50 mm |
2.7 mm , 3.0mm, 3.45mm |
50 mm - 280mm |
0.4-0.5 mm |

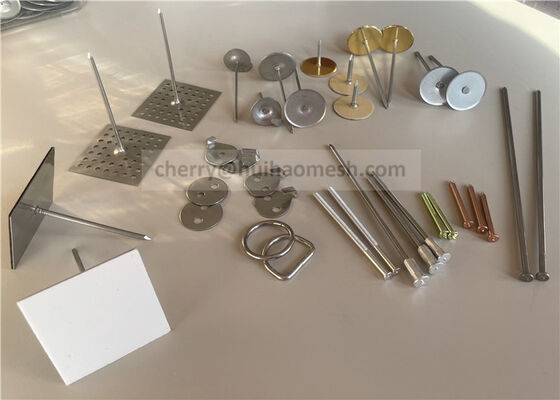

| type | size | material | center hole |
| round | 25mm | galvanized steel, stainless steel, aluminum | 2mm-5mm |
| round | 30mm | galvanized steel, stainless steel, aluminum | 2mm-5mm |
| round | 32mm | galvanized steel, stainless steel, aluminum | 2mm-5mm |
| round | 38mm | galvanized steel, stainless steel, aluminum | 2mm-5mm |
| square | 32mmx32mm | galvanized steel, stainless steel, aluminum | 2mm-5mm |
| square | 29mmx31mm | galvanized steel, stainless steel, aluminum | 2mm-5mm |
| square | 38mmx38mm | galvanized steel, stainless steel, aluminum | 2mm-5mm |
| square | 50mmx50mm | galvanized steel, stainless steel, aluminum | 2mm-5mm |
| square | 65mmx65mm | galvanized steel, stainless steel, aluminum | 2mm-5mm |
| dome cap | 30mm | galvanized steel, stainless steel, aluminum | 2mm-5mm |
| dome cap | 32mm | galvanized steel, stainless steel, aluminum | 2mm-5mm |
| dome cap | 38mm | galvanized steel, stainless steel, aluminum | 2mm-5mm |
| dome cap | 40mm | galvanized steel, stainless steel, aluminum | 2mm-5mm |
| dome cap | 50mm | galvanized steel, stainless steel, aluminum | 2mm-5mm |
|
|||
|
1. Wipe surface clean 2. Glue the base of the perforated insulation fixing pins 3. Stick perforated insulation fixing pins in place 4. Pierce the insulation onto the pins 5. Push the washer onto the pin to hold the insulation in place 6. Bend over the remaining part of the pin if necessary |
|
| PIN LENGTH | CARTON SIZE | QTY/CARTON |
| 38MM | 41CMX28CMX17CM | 1000PCS |
| 50MM-65MM | 41CMX28CMX17CM | 500PCS |
| 70MM-84MM | 30CMX28CMX29CM | 500PCS |
| 90MM-120MM | 30CMX30CMX30CM | 500PCS |
| 130MM-160MM | 30CMX30CMX35CM | 500PCS |
| 170MM-203MM | 30CMX30CMX28CM | 250PCS |
| OTHERS | SUPPORT CUSTOM | |
|
||
|
1. Are you a manufacture or a trader? We are a manufacture, located in Hebei province, China. 2. Do you support product customization? 3. How can I get samples? 3) Shipping methods are DHL, FedEX, TNT, UPS, EMS or others. You need to pay for shipping. 4)Samples will be sent as soon as payment is received. 4. How do you control and ensure product quality? 1) Confirm with you every details before quoting. 2) Before production, we will reconfirm all the details again. 4) We will send you videos and pictures during the production and shipment process. 5. What's your advantages? Cooperate with us, we can ensure: 1) Competitive price: we sale what we manufacture. 2) On-time delivery: we have the auto-production line to ensure the on-time delivery. 3) Excellent quality: we have rich experience, our products are in line with :international standard. 4) Good after-sale service: we offer good after-sale service for each order. |
|
