Product Details:
|
| Name: | SS Lacing Hook | Material: | Stainless Steel 304 / 316 |
|---|---|---|---|
| Hook Size: | 22mm | Washer Size: | 25mm |
| Ring Size: | 3x30mm | Speed Clips: | 25 MM |
| Factory: | Huihao Hardware | Application: | Insulation Blanket, Pad Connector |
| Highlight: | 22 Mm Head Insulation Blankets,Reusable Insulation Blankets,SS Lacing Hook Insulation Blankets |
||
Product Name:SS lacing hooks
Material:Stainless steel 304/316 ,carbon steel
Head size: 22mm diameter ,30mm diameter ,25x11mm
Pin diameter: Standard size is 12GA (2.7mm), 14GA(2.0mm), Other sizes are available by special order.
Pin length: 2-1/2" and 4-1/2" are standard. Other lengths available by special order
Install parts:Self-locking washers are available in a variety of sizes, shapes, and materials.
Domed Caps can also be used to cover the tip of the nail.
Feature of lacing anchor (hooks) :
pins material is annealed steel wire, easy for bending and cutting.
zinc coated/copper plated surface treatment for rustproof
smooth surface ,No burry
base washer material is hardness material, not be deformed
|
Product Name: |
SS304 Stainless steel lacing hook |
|
Brand Name: |
huihaocustom |
|
Diameter: |
12ga, 14ga |
|
head size: |
22mmx1mm, 30mm x 1mm |
|
Length: |
10mm-115mm |
|
Material: |
Carbon steel, carbon steel, stainless steel 304 /316 |
|
OEM: |
available |
|
Packaging Details |
Packing can be customized as per equirements |
|
Pin length: |
1-1/2",2-1/2",3-1/2",4-1/2",5-1/2" |
|
Production workmanship: |
Automated production |
|
Report: |
Material test report and dimension measurement report |
|
Supply Ability: |
100000 Piece/Pieces per Month |
|
Surface treatment: |
zinc coated/ copper plated, polished |
|
Washer Dia.: |
25mm/30mm self locking washers |
|
Type: |
used in the fabrication of insulation blankets or removable covers/pads |
US STANDARD
The head diameter is 1 inch, the pin diameter is 10Ga, the length we have 1/2inch, 3/4 inch, 7/8 inch, 1 inch,
1-1/8inch, 1-1/2 inch 2 inch
Products will be packed by bucket or packed per customer's requirement etc
We usually pack the US standard weld pins by bucket we will pack different quantity for different size
Pallet size: 1100*1100mm
36 bucket on a pallet
EU STANDARD
The head diameter is 30mm, the pin diameter is 2.7mm, there are many different length for EU market, the
length we manufactured-22mm, 27mm, 28mm, 32mm 42mm, 48mm 58mm 60mm 100mm
Some customer will need Kraft paper under head, some customer will need a plastic sleeve on pin, some customer
will need both of them, we can manufacture per customer's requirement
Australia standard
People in Australia will need the US standard or EU standard weld pins, someone will need the 14Ga pin. The
mostly of length in Australia is 25mm, 50mm, 75mm, 100mm.

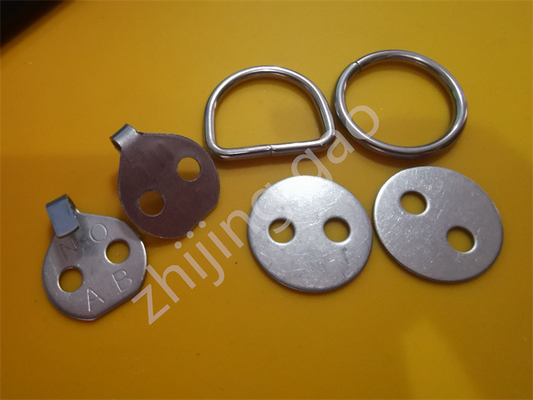

Lacing anchors marked NO AB to notify the blanket is asbestos free
Available diameters : 2 mm (14 ga) and 2,7 mm (12 ga)
Pins length : 63 mm (2 1/2") and 114 mm (4 1/2")
