Product Details:
|
| Name: | 304 Lacing Anchor Fastener | Head Size: | 22mm |
|---|---|---|---|
| Head Type: | Hook Type | Anchor Length: | 35mm-300mm |
| Washer Size: | 25mm | Self Locking Washer: | 25mm |
| Lacing Ring: | 3mm X30mm | Usage: | Insulation Blanket |
| Highlight: | Lacing Anchor Insulation Pad,Reusable Insulation Pad,304 Insulation Pad |
||

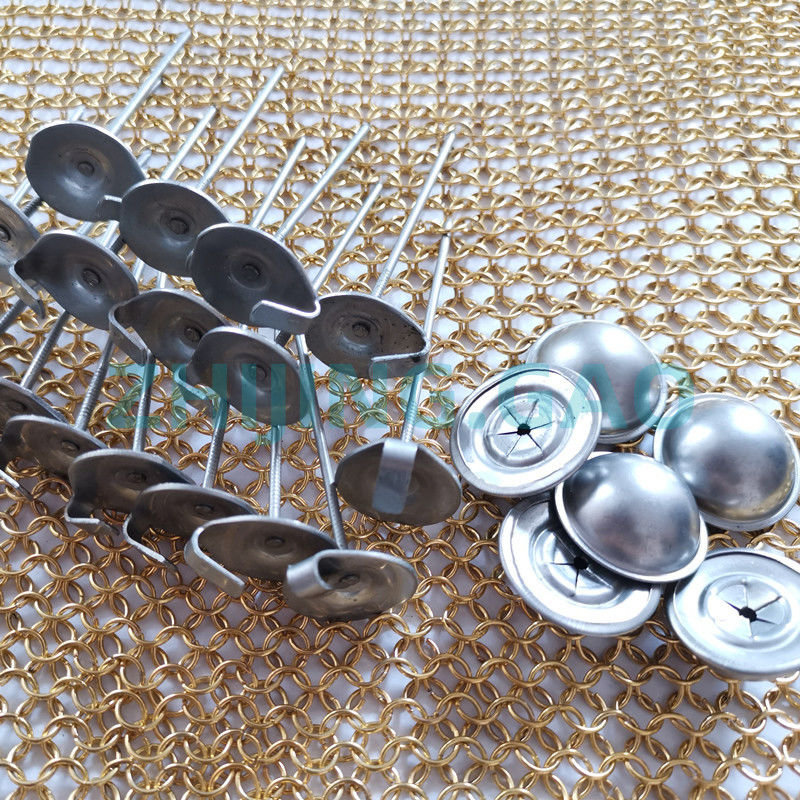

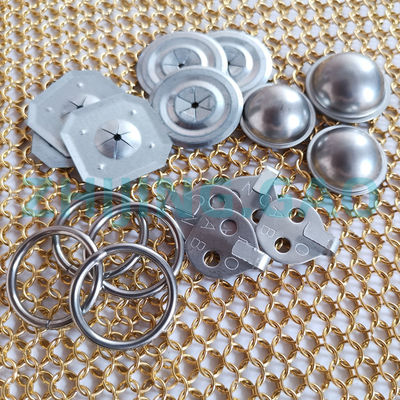

LACING anchor fastener is a insulation hanger that is fabricated by a round or rectangular hook attached a pin, it is used for fasten the insulation blanket or removable cover. Press the pin through insulation and put the self-locking washer
onto the pin, bend over or clip off the pin. The insulation material can be laced by hook with a tie wire.
| pin diameter | head diameter | head material thickness | hook length | length of the lacing anchor |
| 14 ga (.080) | 7/8"/30mm | 1mm | 11mm | 1"-4-7/8" |
| 12 ga (.106) | 7/8"/30mm | 1mm | 11mm | 1"-4-7/8" |
| US Standard of lacing anchor | EU standard of lacing anchors | Australia standard of lacing anchors |
| The head diameter is 1", the pin diameter is 10Ga, the length we have 1/2"- 2 " |
The head diameter is 30mm, the pin diameter is 2.7mm, there are many different length for EU market, the length we manufactured-22mm- 100mm Some customer will need kraft paper under head, some customer will need a plastic sleeve on pin, |
People in Australia will need the US standard or EU standard weld pins, someone will need the 14Ga pin. The mostly of length in Australia is 25mm, 50mm, 75mm, 100mm. Lacing anchors marked NO AB to notify the blanket is asbestos free |
1: prepare the insulation blanket or removable cover
2: press the lacing anchor through the insulation
3: press the self locking washer into the pin to fasten the insulation
4: bend over or clip off the pin
5:install the insulation blanket or removable cover
6: Lace the hook by lacing tie in order to fasten the insulation.
Q: Are you a factory or trading company?
A: We are the specialized supplier of insulation pins fastener, can provide the best price.
Q: Where is your factory?
A: Our factory is located in RAOYANG city HEBEI province.
Q: How can I get the price?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
Q:Can you make OEM or ODM service?
A: Yes. We can accept OEM service.
Q:How to ensure that every process's quality?
A: Every process will be checked by our quality inspection department which insures every product's quality.
Q: Can you provide some sample before placing orders?
A: Samples are free,Please feel free to contact us.
Q: What is your payment term?
A: T/T,Western Union,L/C,and Paypal.This is negotiable.
Q:What is the shipping method?
A: It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX etc).Please confirm with us before placing orders.
Q:What is your lead time?
A: It depends on the order quantity and the season you place the order.Usually we can ship within 3-7 days for small quantity,and about 20-30 days for large quantity.
