Rock Wool 50mm Tape Base Self Stick Pins Fixing Aluminum

Rock Wool 50mm Tape Base Self Stick Pins Fixing Aluminum
Rock Wool 50mm Tape Base Self Stick Pins Fixing Aluminum Rock Wool 50mm Tape Base Self Stick Pins Fixing Aluminum Rock Wool 50mm Tape Base Self Stick Pins Fixing Aluminum

Large Image :  Rock Wool 50mm Tape Base Self Stick Pins Fixing Aluminum

Product Details:
Place of Origin: China
Brand Name: HUIHAO KASITE
Certification: ISO9001-2015
Model Number: SA-50
Payment & Shipping Terms:
Minimum Order Quantity: 10000 sets 50mm Tape Base Self Stick Pins
Packaging Details: BAG + CARTON+PLATE for 50mm Tape Base Self Stick Pins
Delivery Time: 7 WORK DAYS
Payment Terms: L/C, T/T
Supply Ability: 500000 sets 50mm Tape Base Self Stick Pins per 30 days
Contact Now

Rock Wool 50mm Tape Base Self Stick Pins Fixing Aluminum

Description

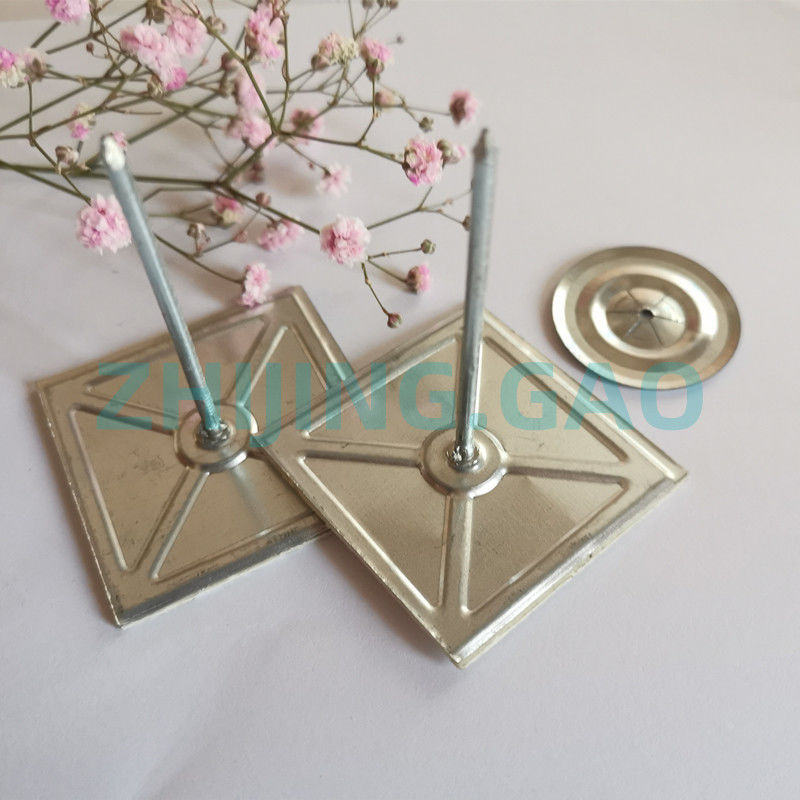

Name: 50mm Tape Base Self Stick Pins Base Plate: 50mm
Pin Diameter: 2.7mm Pin Length: 38mm -280mm
Material Of Pin: Alumninum Wire Or Galvanized Steel Material Of Base Plate: Galvanized Steel
Install Part: Self Locking Washer Factory: Huihao Hardware
Highlight:

adhesive stick pins for insulation

,

self adhesive pins for insulation

,

insulation pins self adhesive

Metal Self-Adhesive Insulation 50mm Tape Base Self Stick Pins For Temperature

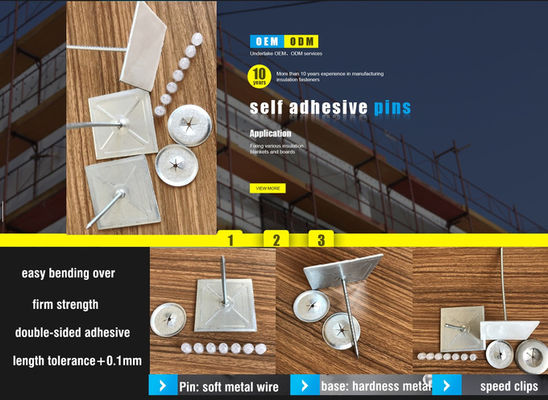

Quick details of the self stick pins

  • Product name: self adhesive pins, self stick nails, rock wool insulation pins, self stick up hangers
  • Pin material: stainless steel. mild steel, aluminum
  • Pin diameter in common: 2.7mm or 3mm
  • Pin length in common: 38mm, 45mm, 63mm, 90mm, 120mm, 140mm, 160mm, 180mm, 203mm
  • Tape base size: 50mmx50mm
  • Fixing parts for self stick pins : Self locking washer, dome cap washers, speed clips.

Specification details of the self stick pins

parts no.

material

Base size

Pin diameter

pin length

fixed parts

XY-50-38

pin material:

  • anneaded steel wire

  • anneaded stainless steel wire

  • aluminum wire

base material:

  • hardness steel or stainless steel

base size:

  • 50x50mm

base thickness:

  • 1mm

base type:

  • double adhesive

liner:

  • Siliconized paper

2.7mm

38mm

self locking washer

doem cap washer

XY-50-45

2.7mm

45mm

XY-50-55

2.7mm

55mm

XY-50-62

2.7mm

62mm

XY-50-90

2.7mm

90mm

XY-50-114

2.7mm,3.0mm

114mm

XY-50-120

2.7mm,3.0mm

120mm

XY-50-140

2.7mm,3.0mm

140mm

XY-50-160

2.7mm,3.0mm

160mm

XY-50-180

2.7mm,3.0mm

180mm

XY-50-203

2.7mm,3.0mm

203mm

XY-50-230

2.7mm,3.0mm

230mm



Application of the self stick pins

Self Stick pins are easily install any type of insulation up to 3.5" thick to air ducts, metal buildings, concrete foundations - even to the underside of wooden roofs. Insulation Hangers are perfect for installing fiberglass or rubber insulation blankets or polystyrene board.

Metal Self Adhesive Insulation 50mm Tape Base Self Stick Pins For Temperature 0



Fixing parts for self stick pins

speed clips type

size

material

center hole diameter

surface treatment

round type self locking washer

15mm

0.4mm galvanized steel

0.4mm stainless steel

0.6mm aluminum

2.5mm

mild steel:

zinc coated



sttainless steell:

polished



aluminum alloy:

Anti-ultraviolet coating black color

round type self locking washer

20mm

2mm-3mm

round type self locking washer

25mm

2mm-5mm

round type self locking washer

32mm

2mm-5mm

round type self locking washer

38mm

2mm-5mm

round type self locking washer

50mm

3mm-8mm

square type self locking washer

32x32mm

2.7mm, 3mm

square type self locking washer

29x31mm

2.5mm,

square type self locking washer

65x65mm

2.7mm, 3mm
