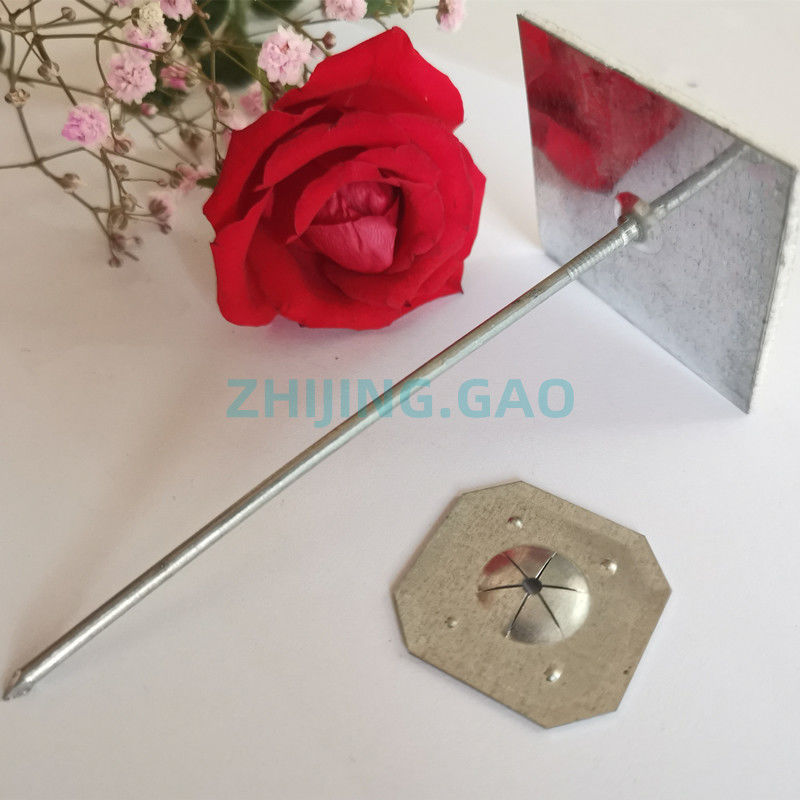

Product Details:
|
| Name: | Self Adhesive Insulation Fixing Pins | Material: | Galvanized Steel |
|---|---|---|---|
| Tape Size: | 50 Mm X 50 Mm | Tape Thickness: | 1 Mm |
| Pin Length: | 114 Mm | Pin Dia: | 12 GA |

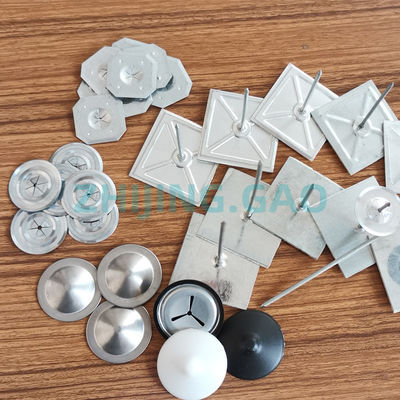

| Finished: | Copper Coated, Zinc Coated | Install Parts: | Speed Clips, Dome Cap Washer |
| Highlight: | rock wool self stick insulation pins,self stick insulation pins 114 mm,rock wool insulation pins self adhesive |
||
1. standard JG/T366-2012
2. adhesive quality standard: GB4852-84,GB4851-98,GB/T15903-1995,GB7125-86
3. Adhesive use temperature: insulation pins adhesive the temperture is 7 degree -50degree.
For example, low temperature resistant labels can be used from minus 70 degrees to minus 196 degrees. High temperature resistant label that can be used in a 300 degree environment. Purchasing labels that adapt to the temperature environment of your product can achieve the correct results.
| Technical parameter of Self Adhesive Insulation Fixing Pins |
| Foam density: 182kg/m³ Liner release value: 10 N/m Peel Adhesion (23℃): 20 N/25mm Application Temperature: 10℃ - Advisory Static Shear: >1000 Hrs (PSTC) Service Temperature (Minimum): -35℃ Service Temperature (Maximum): +90℃ Tensile Strength: (L) 113 N/cm² (CNS10487)(C) 85 N/cm² Elongation: (L)170% (CNS 10487)(C) 150% Shelf Life: 2 years (20℃ 65%RH) |
| Pin diameter | Base size | Pin length in common | Clips Size |
| 12 Ga (2.7mm or 0.106'') | 50mmx50mm | 1'' | 22mm - 40mm, 35mm in common |
| 12 Ga (2.7mm or 0.106'') | 50mmx50mm | 2'' | 22mm - 40mm, 35mm in common |
| 12 Ga (2.7mm or 0.106'') | 50mmx50mm | 2 1 / 2'' | 22mm - 40mm, 35mm in common |
| 12 Ga (2.7mm or 0.106'') | 50mmx50mm | 3 1 / 2'' | 22mm - 40mm, 35mm in common |
| 12 Ga (2.7mm or 0.106'') | 50mmx50mm | 4'' | 22mm - 40mm, 35mm in common |
| 12 Ga (2.7mm or 0.106'') | 50mmx50mm | 5 1 / 2'' | 22mm - 40mm, 35mm in common |
| 12 Ga (2.7mm or 0.106'') | 50mmx50mm | 8'' | 22mm - 40mm, 35mm in common |
| The Self Stick Adhesive Insulation fixing pins also could be produced as request via from material, pin dia and length. | |||
Huihao specializes in the production and operation of various standard and non-standard insulation fasteners. Our company established in 2011 and covers an area of more than 13,000 square meters, with a construction area of more than 9,000 square meters. We have more than 50 sets of fastener production equipment. hebei huihao has perfect testing equipment and supporting facilities for production, safety and environmental protection. We have passed the ISO 9001-2015 international quality system certification and have a strict product quality control system. HEBEI Huihao adheres to the mission of "With first-class management and technology to provide users with high-quality products. Serve our customers with advanced marketing concepts.
